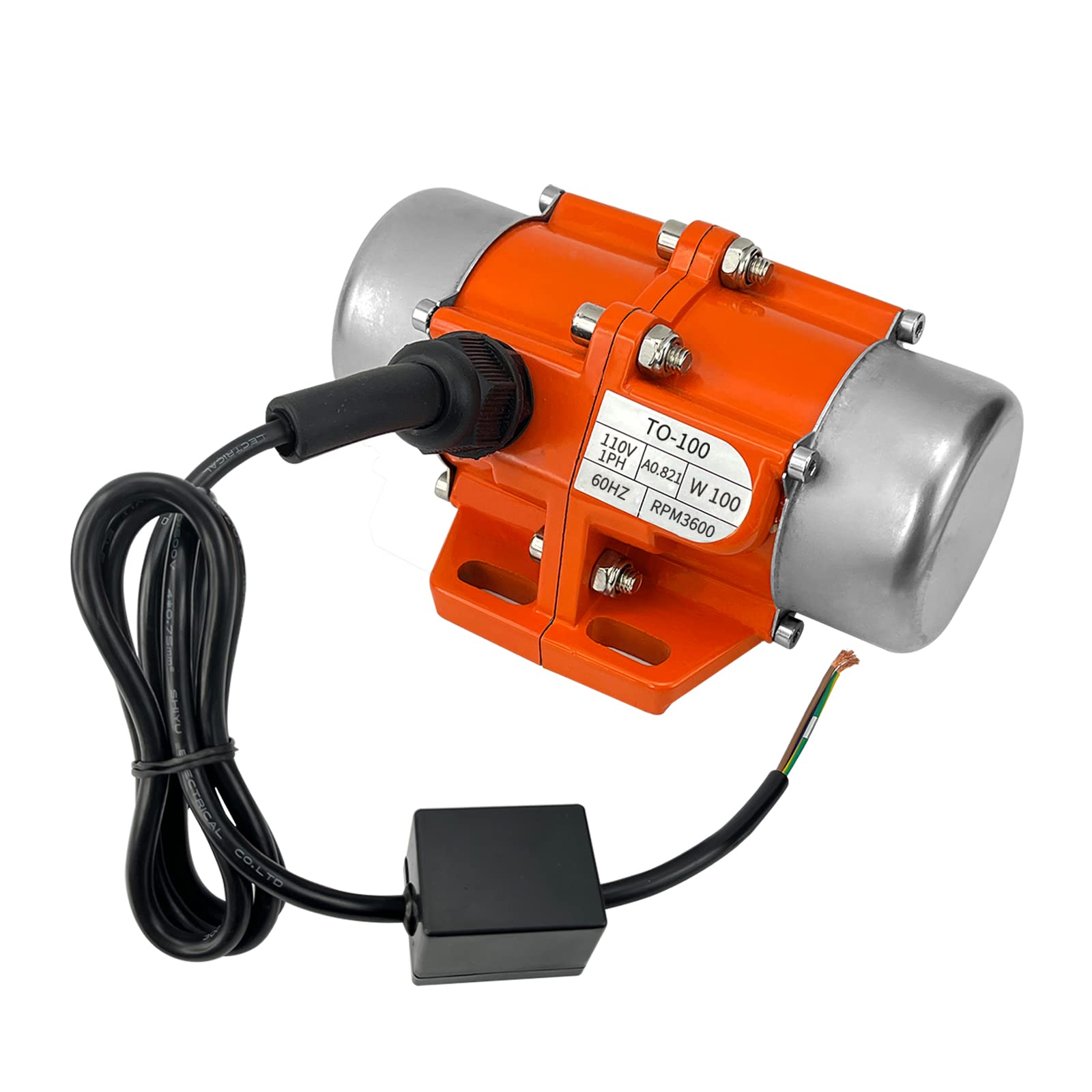

Small Concrete Vibrator Industrial Vibration Motor Single Phase 100W AC 110V 3600Rpm Aluminum Alloy Vibrating Vibrators for Sand Shaker Table

Brand: Putec Vibration Motor

Color: orange

Features:

• 【100W AC Vibrating Motor】This concrete vibrating motor power: 100W; vibration force: 100kg; speed: 3600rpm; voltage: 110V (single-phase) insulation class-F; waterproof class IP65

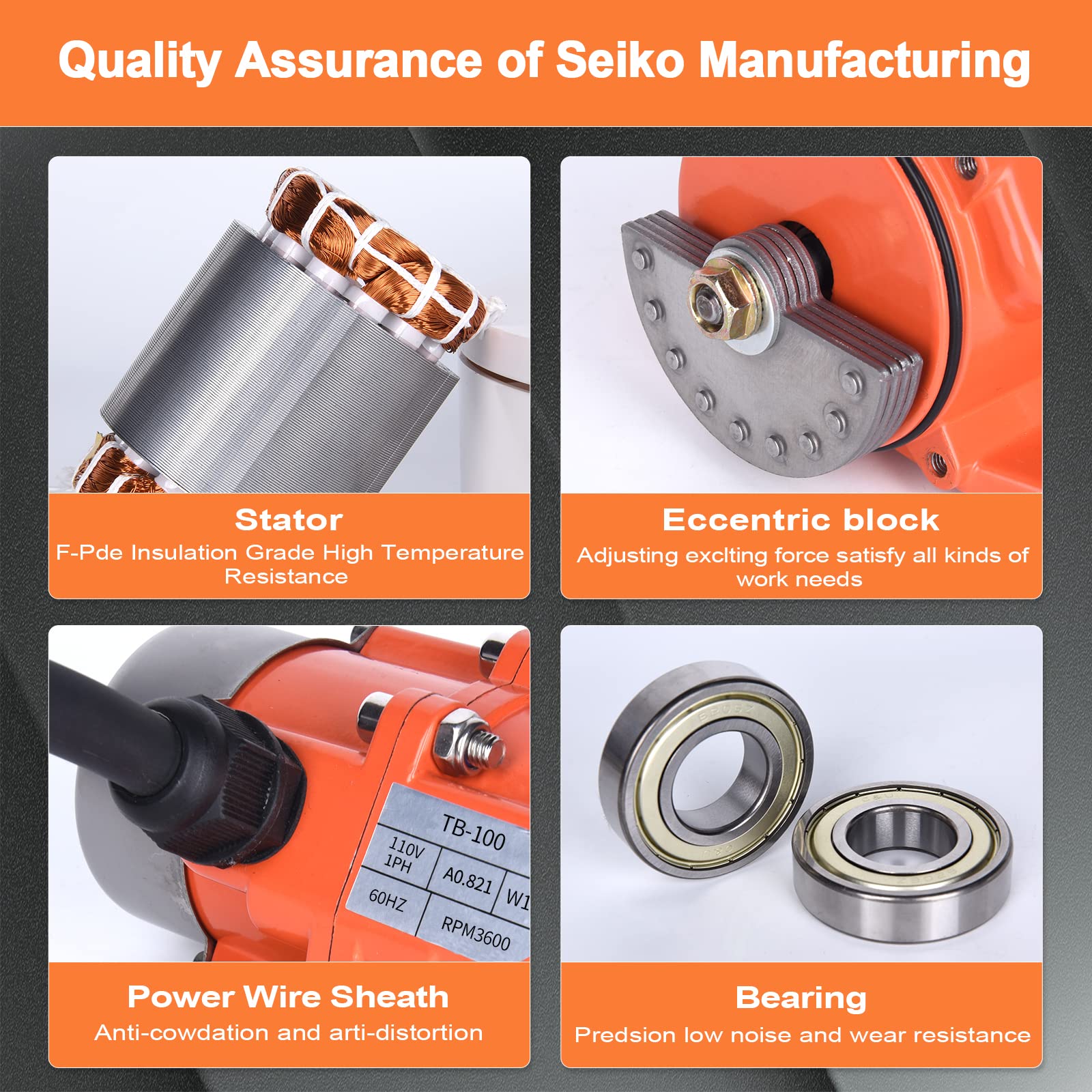

• 【Upgraded aluminum alloy and stainless steel material】The vibration motor is made of high quality aluminum alloy and stainless steel shell precision casting, which is a one-piece sealed structure design to ensure durability, light weight and fast heat dissipation
• 【Adjustable eccentric block】The angle of the eccentric block of this vibration motor can be adjusted to support stepless adjustment of vibration force to meet various working requirements. Note: The eccentric blocks on both sides of the vibration motor must be confirmed to be symmetrical.
• 【Pure copper enameled wire stator】 Vibrating motor stator adopts high temperature resistant pure copper enameled wire, 100% full copper winding, special vacuum dipping paint process, with low temperature rise, long service life, strong magnetic field and 'F' characteristics such as high insulation level.
• 【Wide application scope】The main applicable equipment of this vibration motor are vibrating table, vibrating table, vibrating feeder, vibrating screen, specific gravity de-stoner, etc... Widely used in mining, metallurgy, coal, electric power, construction, chemical, medical, casting, food, powder coating equipment, powder sieving, food machinery, massage equipment, etc.

Binding: Tools & Home Improvement

model number: TB-100

Part Number: X01 x02

EAN: 0689323932672

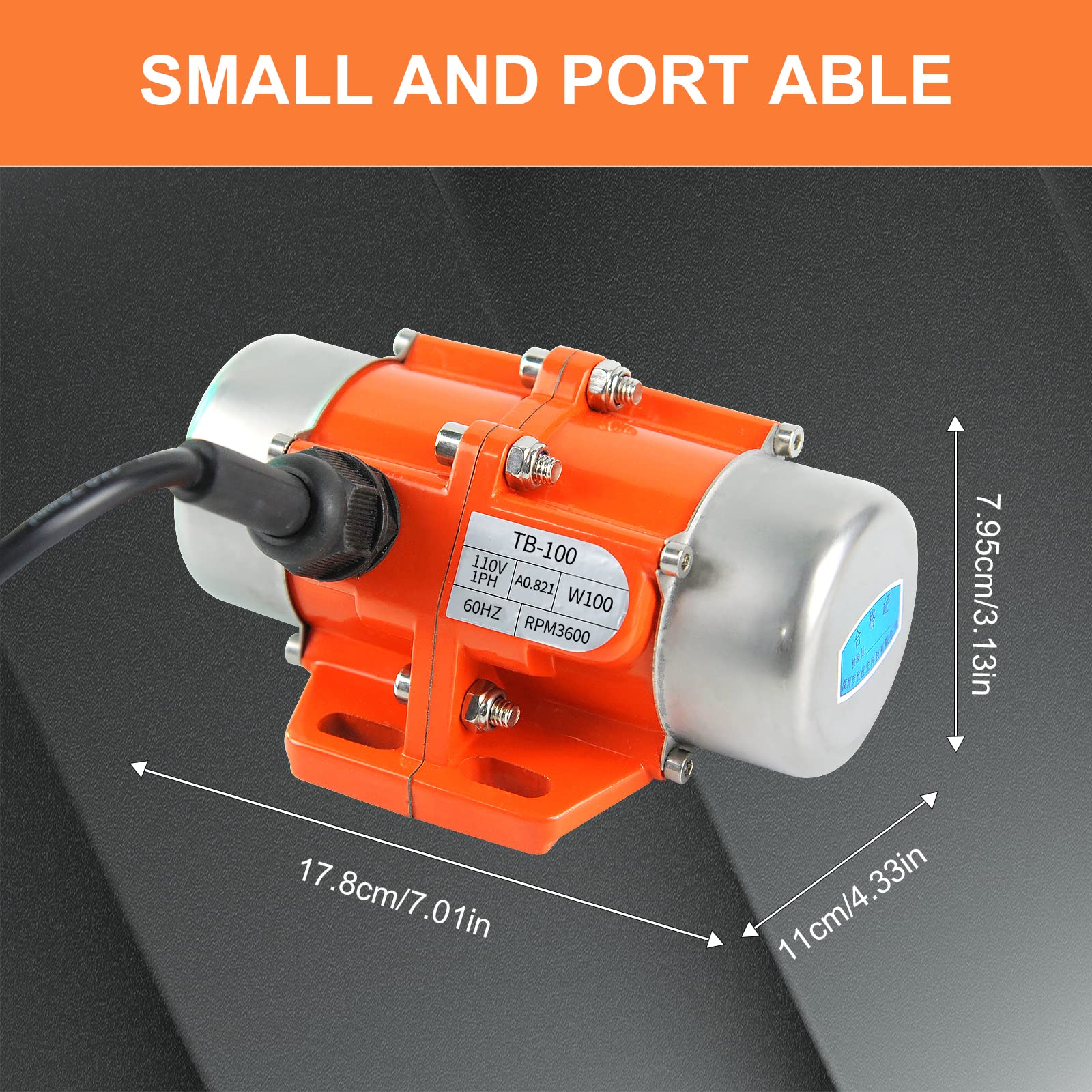

Package Dimensions: 7.9 x 5.7 x 5.0 inches
