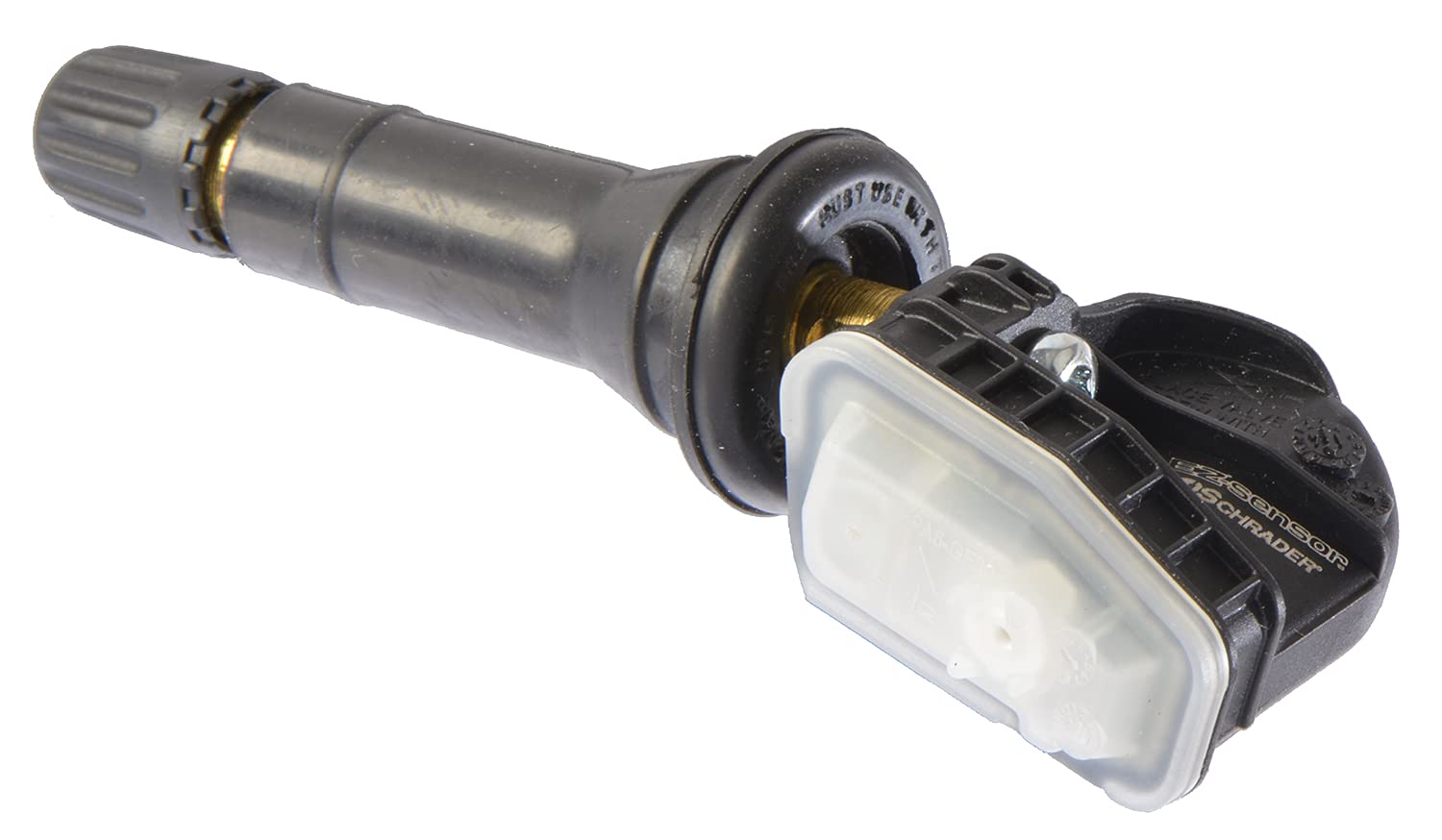

Schrader 33500 EZ-Sensor Single SKU (314.9 MHz, 315 MHz, and 433 MHz) Programmable Snap-in Fixed Angle Valve Tire Pressure Monitoring Sensor (TPMS), Requires Programming Before Installation

Brand: Schrader TPMS Solutions

Color: Black

Features:

• Schrader Ez-Sensor Combines 314.9, 315, And 433 Mhz applications into one sensor, optimizing inventory levels and eliminating potential lost sales
• Ez-Sensor MUST be Programmed using a compatible tool, with the vehicle year, make and model protocol before installing the sensor into the wheel, and before the relearn procedure is performed (see list of compatible tools below in the Product Details section)
• Once programmed, EZ-sensor performs identically to the OE replacement sensors and can be installed into the vehicle’s rim
• Always keep your TPMS scan and programming tool software up to date to ensure maximum vehicle coverage
• Schrader Ez-Sensor 33500 is desinged and manufactured to OEM quality standards and requirements, replicates OE functionality, including auto-locate technology, and is future proofed to support new and pending OE system technologies

Binding: Automotive

Release Date: 23-11-2015

model number: 33500

Part Number: 33500

Details: EZ-Sensor must be programmed using a compatible tool (see list below), with the vehicle Year, Make and Model protocol, before installing the sensor into the wheel, and before the relearn procedure is performed. For the best TPMS coverage and service, ensure that your TPMS tool has the latest software update.
A high quality TPMS diagnostic tool can... Diagnose and program all TPMS Sensors Provide audit reports Perform re-learn procedures Include OBDII capabilities

Compatible Tool List as of March 2024: Schrader ST-1 Schrader S-56 Schrader S-46 Schrader S-41 Schrader EZ-Sensor PAD ATEQ VT-57 ATEQ VT-56 ATEQ VT-36 ATEQ VT-37 ATEQ VT-67 Bartec TechRITEPro Bartec TECH450Pro Bartec TECH600Pro Bartec TECH1000 Bartec TECH400Pro Bartec TECH300Pro Bartec TECH500 Snap-On TPMS5 Snap-On TPMS4 Snap-On TPMS3
For the best TPMS coverage and service, ensure that your TPMS tool has the latest software update.

EAN: 0651001215971

Package Dimensions: 3.2 x 1.3 x 1.1 inches
