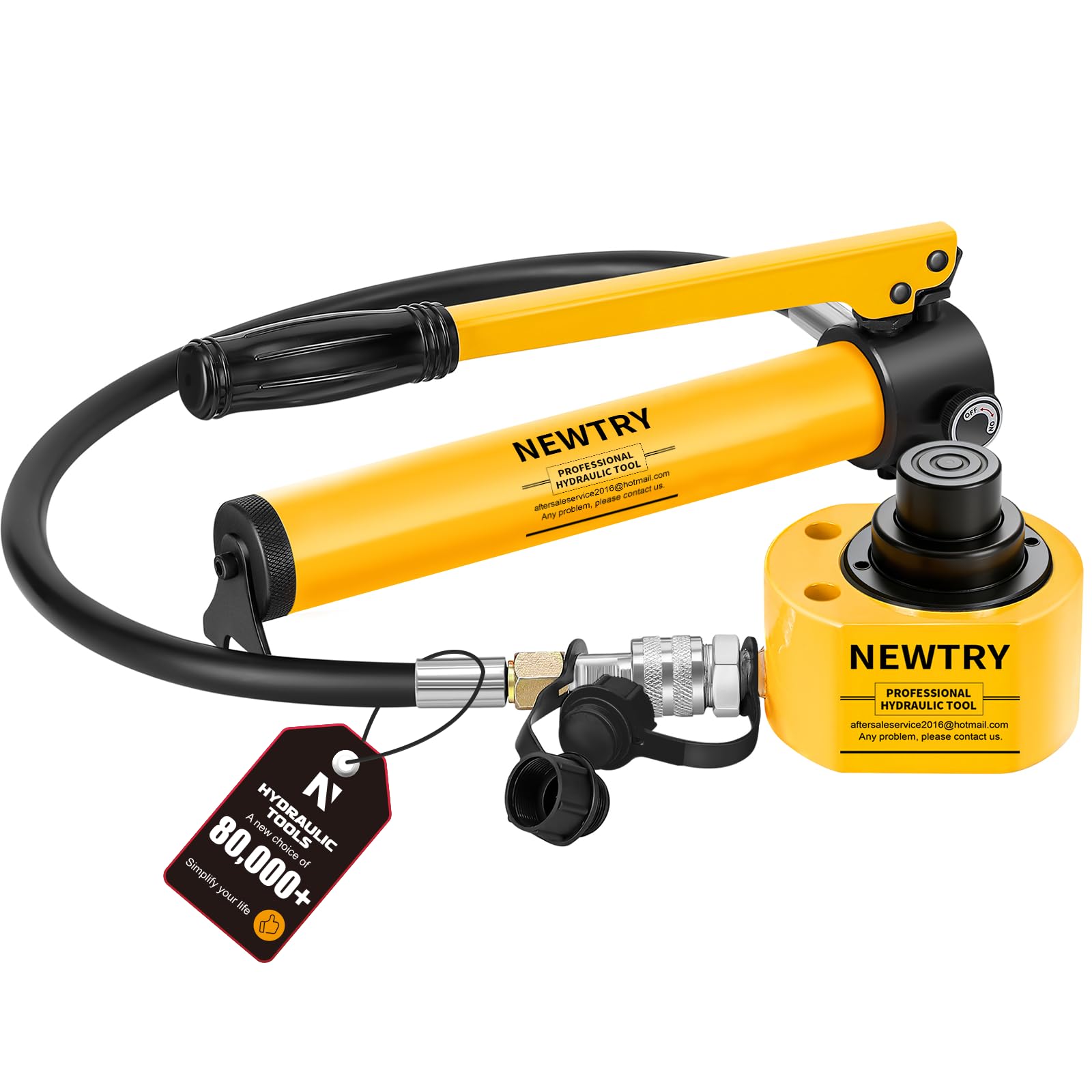

NEWTRY 10T Low Profile Hydraulic Jack Porta Power Kit + CP-180 Manual Hydraulic Hand Pump Multi Section Jack, 1” Stroke Industrial Mini Hydraulic Cylinder

Brand: NEWTRY

Color: Yellow

Features:

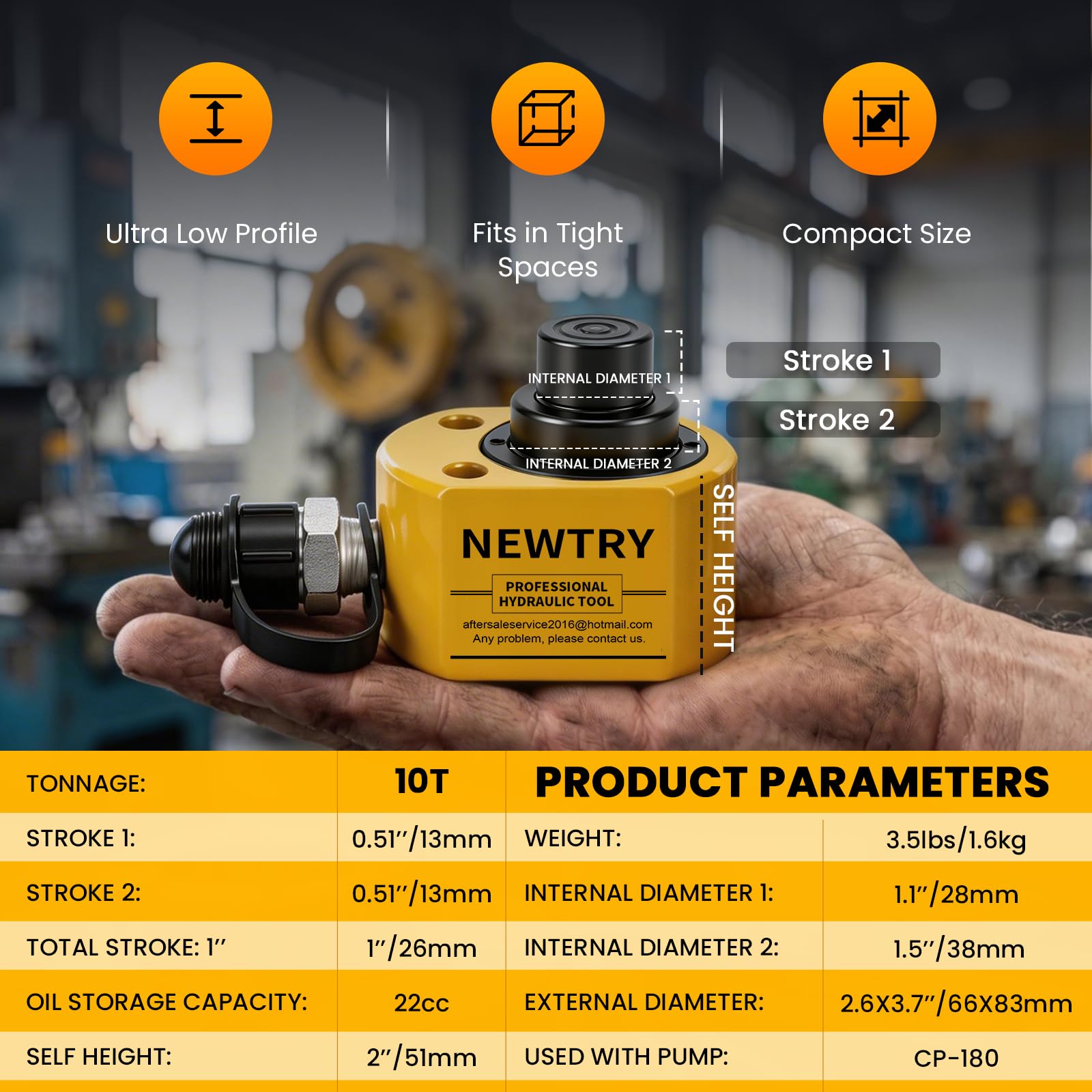

• ▷Jack Parameters---Tonnage: 10T | Stroke 1: 0.5 inch/13MM | Stroke 2: 0.5 inch/13MM | Stroke 3: / | Total stroke: 1 inch/26MM | Oil storage capacity: 22cc | Self height: 2 inches/51MM | Weight: 3.5 lbs/1.6kg | Compression area: 1.75 square inches/11.3cm2 | Inner diameter 1: 1.1 inches/28mm | Inner diameter 2: 1.5 inches/38mm| External diameter: 2.6x3.3 inches/66x83mm

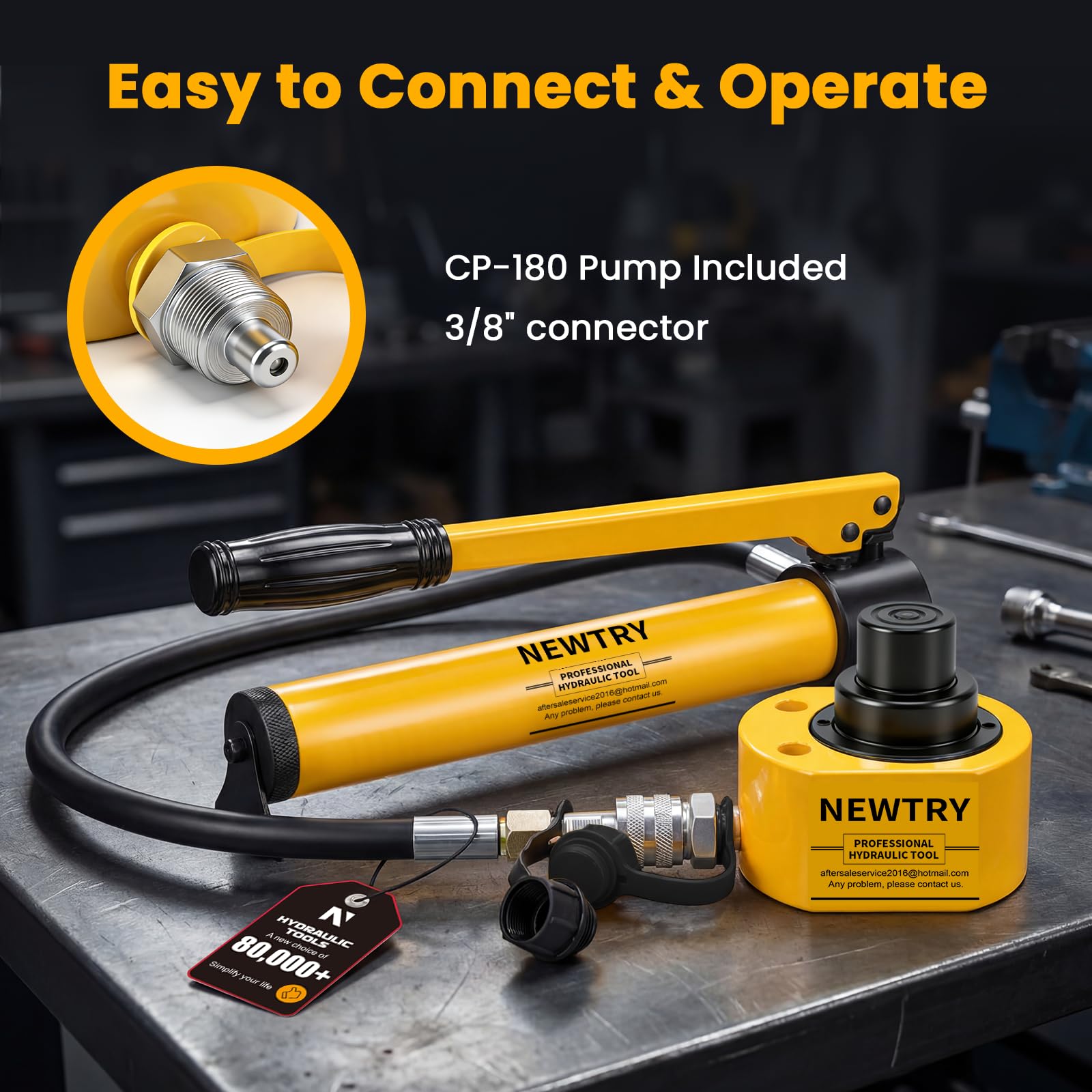

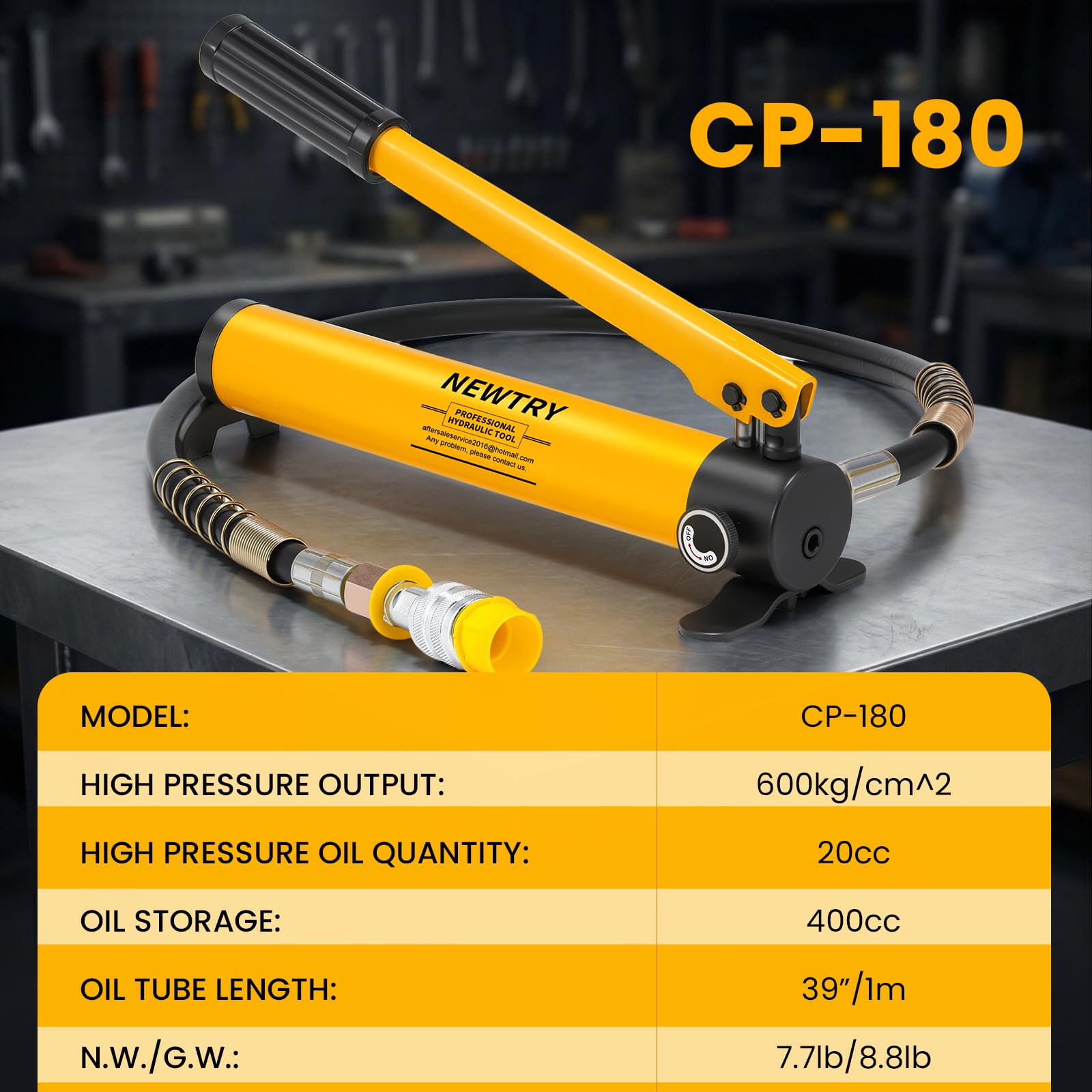

• ▷Pump Parameters---Oil capacity: 400cc | High pressure output: 600kg/cm2 | Length: 13.4”/340mm | Weight: 7.7lbs/3.5kg | Oil pipe coupling with: 3/8'' connector | Hose length : 31”/0.8m. When using the cp - 180 manual hydraulic pump, which has a relatively small oil volume, you may need to press the handle several times to slowly lift the hydraulic jack. This is not a quality issue.

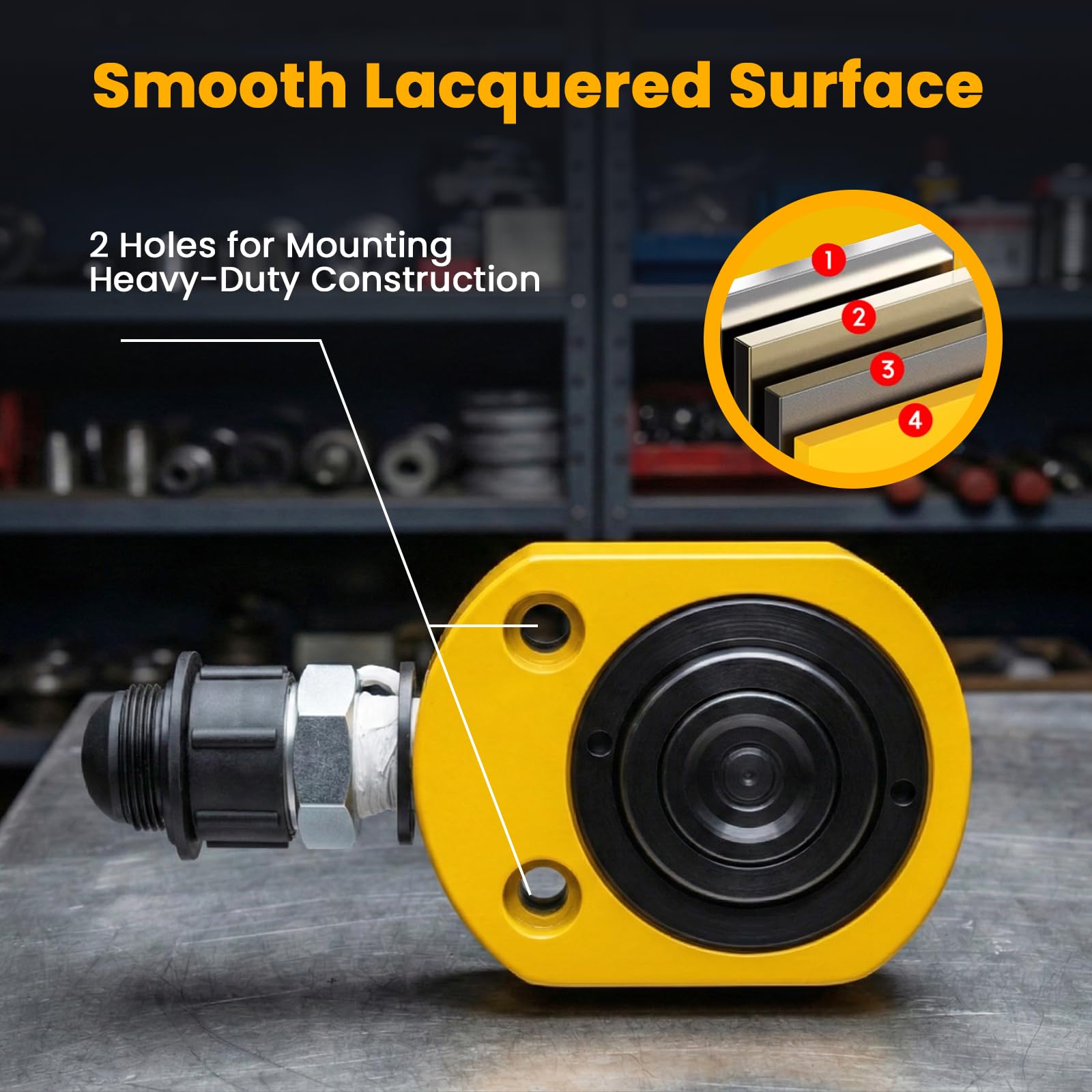

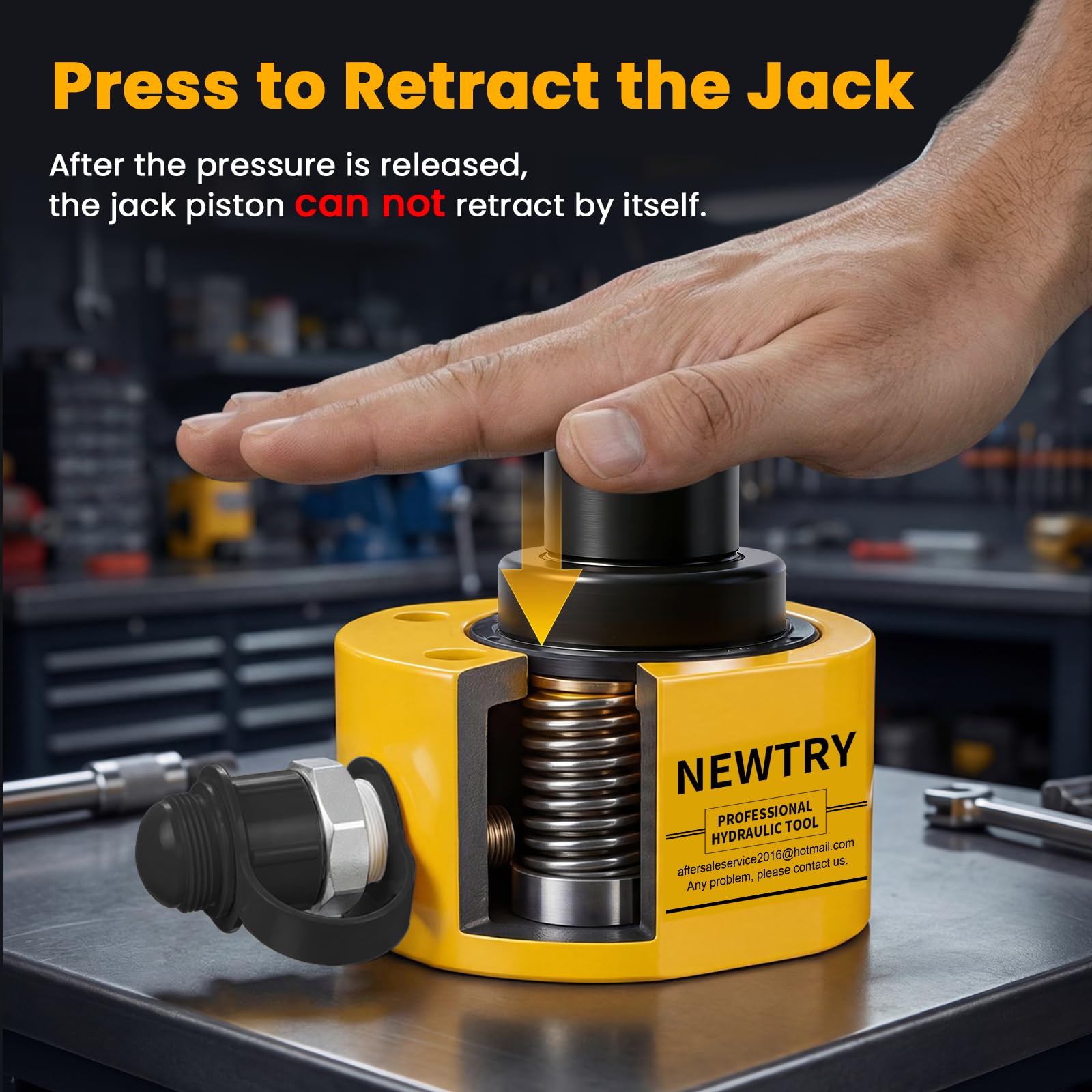

• ▷Convenient Mounting Options---Featuring two pre-drilled holes, this multi - section jack offers convenient mounting options. Whether you need to install it in a workshop, these holes simplify the mounting process. Just note that after pressure release, the piston needs external gravity to retract.
• ▷Leak - Proof and Dust - Resistant Design---The joints of this hydraulic jack are equipped with a plastic dust - proof cap. It prevent oil leakage and keep dust away from the internal components, maintaining the jack's performance over time. This leak - proof and dust - resistant design ensures that the jack remains in good working condition.
• ▷Compact Design with Strong Functionality---This hydraulic porta power ram features a compact size, making it suitable for use in tight spaces. It has a notable working capacity, providing both portability and flexibility during operation. With its small size, it can generate a substantial lifting force. This makes it a practical tool for various applications where space is limited yet reliable performance is required.

model number: YX519

Part Number: YX519

Package Dimensions: 15.4 x 9.6 x 8.0 inches
