HeatTech 30 sqft Floor Heating Cable Set, Electric Radiant in-Floor Heat Heating Cable Warming System, 120V, 120ft Long Heating Cable, 7-Day Programmable Floor Sensing Thermostat Aube TH115-AF-120S

Brand: HeatTech

Color: Red Radiant Floor Heating Cable

Features:

• Area Coverage: 20 sqft @ 2' spacing; 30 sqft @ 3' spacing (recommended), 40 sqft @ 4' spacing. Use cable guides to install floor heating cable at even spacing. Aluminum foil tape can be used as well.
• Floor Heating Cable Length: 120 ft long + cold lead (10ft). Voltage: 120V. Output: 360W (3W/ft.). Amperage: 3 Amps. Floor Heating Cable is only ~1/8' thick and will not raise the floors significantly. ZERO EMF.

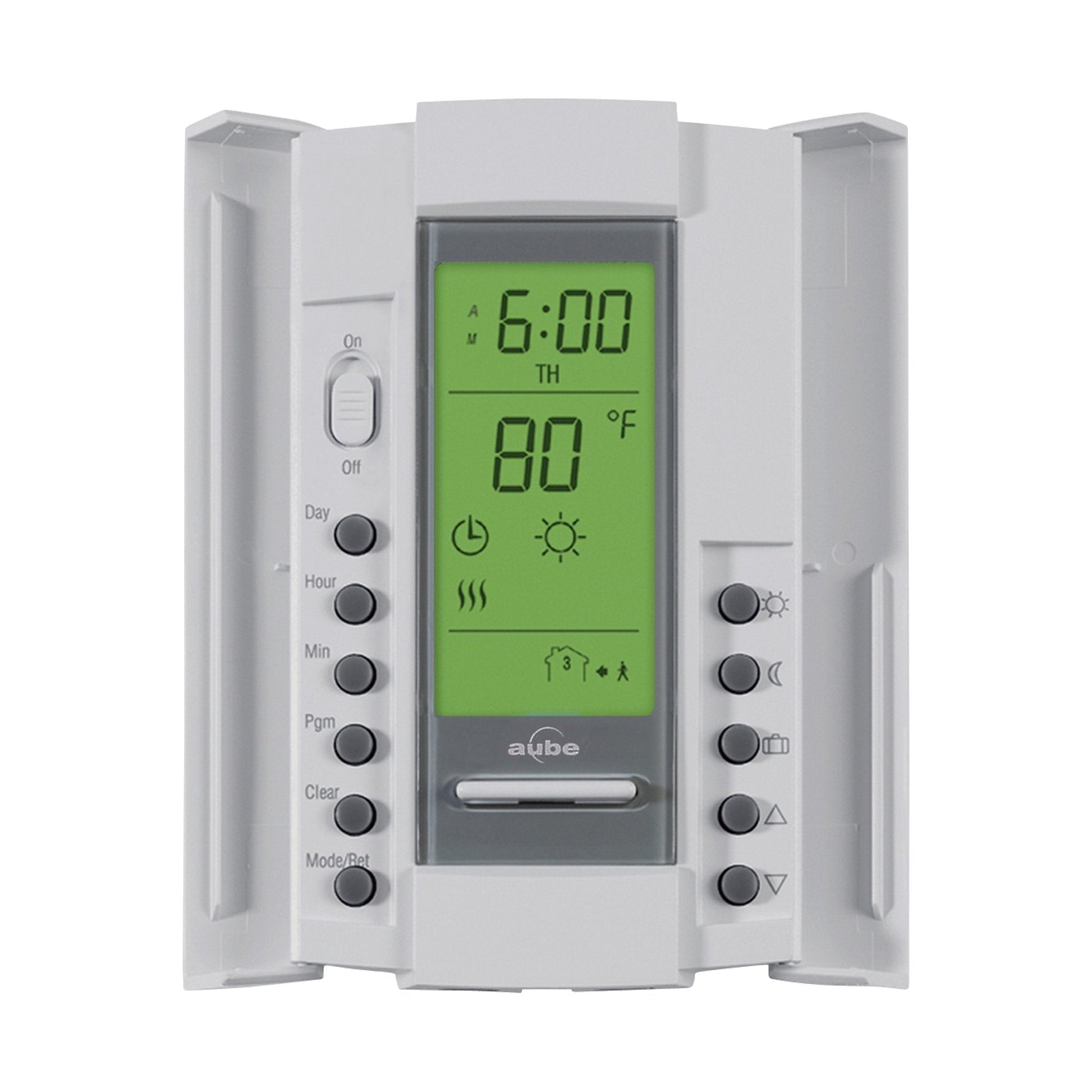

• AUBE TH115-AF-120S Radiant Floor Heating Thermostat with Floor Sensor. 7-day Programmable with 4 time periods per day. Adjustable Temperature. Three choices of temperature control in a single thermostat: (Ambient, Floor, or Ambient with Floor temperature limits). The floor sensor is 15 ft long.
• UL listed and/or ETL listed or USA and Canada. 25-year Warranty on Electric Floor Heating Cable. 3-year Manufacturer's Warranty on AUBE radiant floor heating thermostats.

model number: 30 sq.ft.

Part Number: HTCBL-KIT-120-120

Details: HeatTech Electric Radiant Floor Heating Cable is perfect for:
Tile, Stone, Granite and Marble floors
Bathrooms, Kitchens, Showers, Saunas and others
Both new construction and retrofits
Residential homes and apartment buildings
Whole house heating

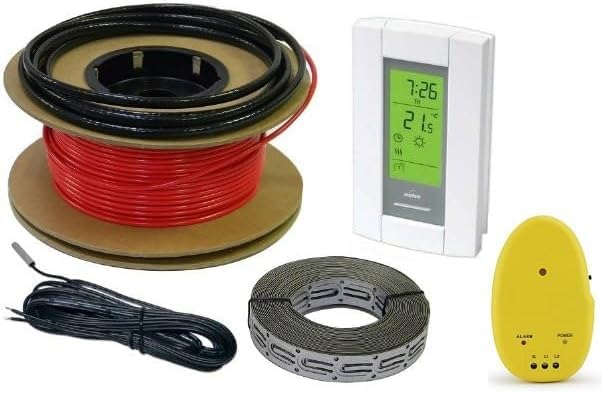

What's included:
Electric radiant heating cable on a spool
Cable guides – (1) 25ft roll is required for every 200ft of cable
Detailed installation manual

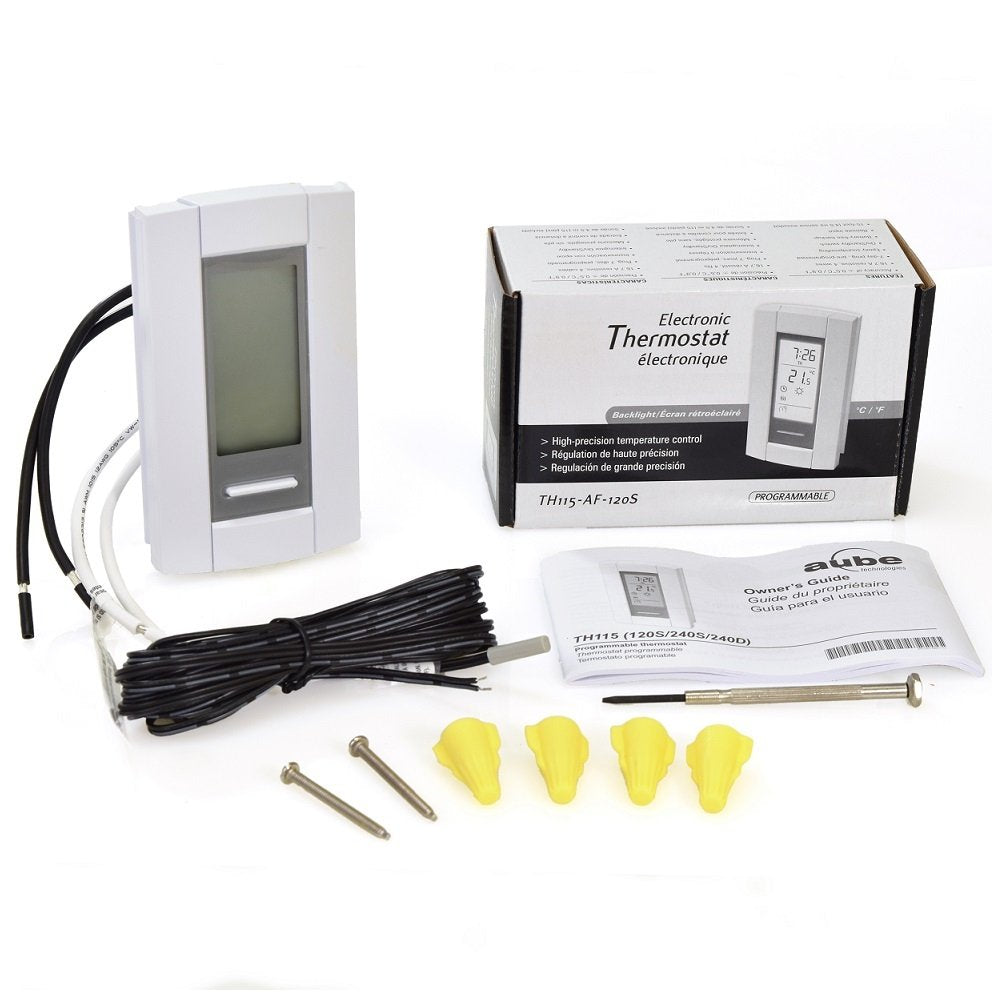

Honeywell/Aube TH115-AF-120S thermostat with floor sensor

Features:
HeatTech floor heating cable is UL listed for USA (complies with electrical safety standards).
Heating cable is only ~1/8' thick and will not raise the finished floor significantly.
Zero Electromagnetic Field.
Made using the highest quality materials in the industry.
Comes with a single armored 10ft long cold lead wire for easy connection to the thermostat – no extra wiring or drilling.

Benefits:
Helps to create incomparable levels of comfort
Fast & easy to install
Energy-efficient
Compatible with all brands of domestic floor sensing thermostats, including Honeywell/Aube and many others;

Sizing & Installation:

Sizing is easy – simply select a HeatTech cable with area coverage which corresponds to the size of the heated area.
120V system allows for installation of up to 600ft of heating cable (150 sq. ft. at 3” spacing) on a single thermostat.
System allows to connect up to 3 separate cable runs to a single thermostat to match the size of the heated area.
Installing cable at 3” spacing is recommended for optimal heat output.

Package Dimensions: 12.2 x 9.3 x 6.7 inches
