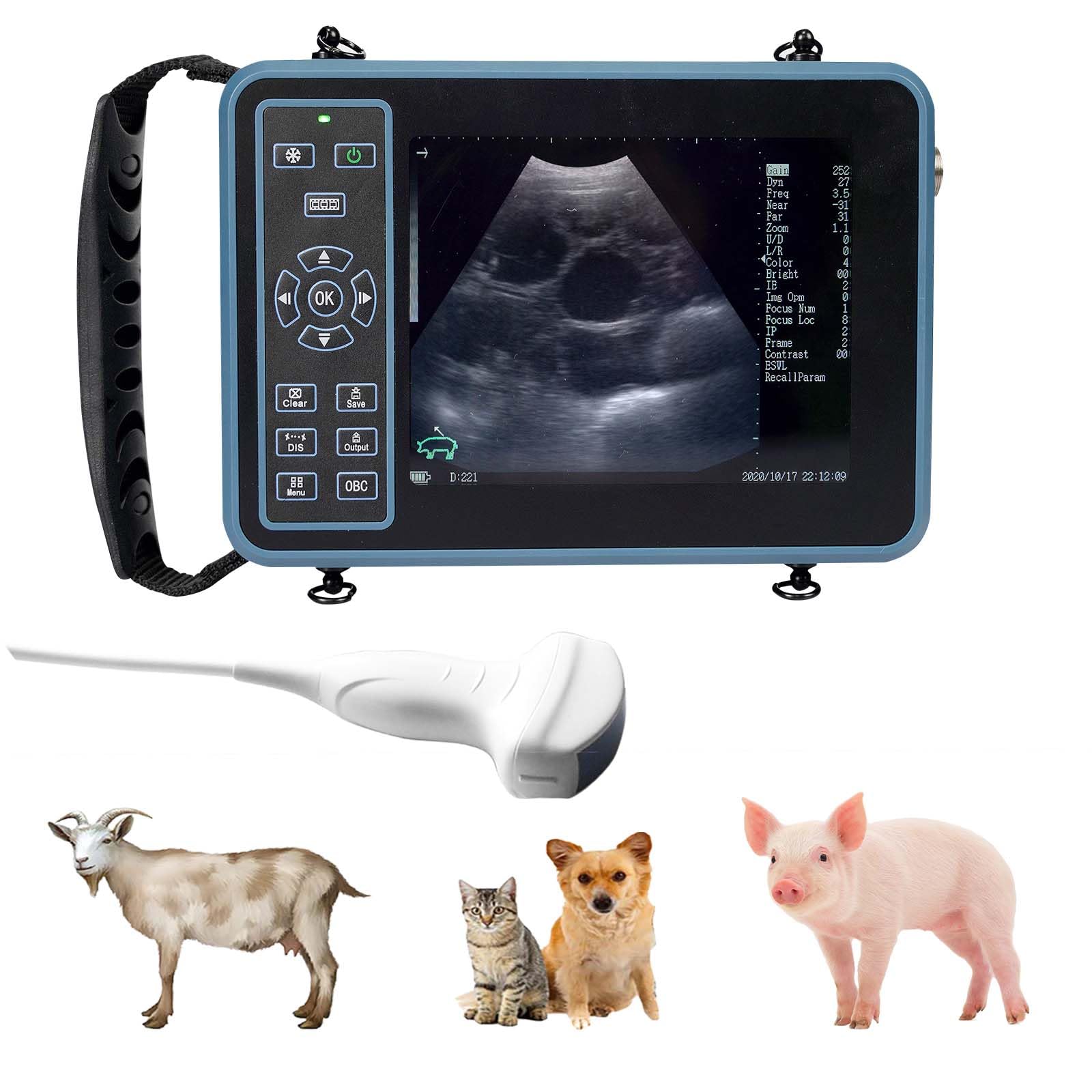

DAWEI Veterinary Ultrasound Machine for Pregnancy Portable Scanner with 3.5Mhz Convex Probe Waterproof Probe for Pig,Sheep,Dog,Cat,Livestock,Pet use

Brand: DAWEI

Features:

• Convex probe Frequency: 2.5MHz - 5.0MHz Application: pregnancy diagnosis for medium animals, such as sheeps, goats, pigs and dogs
• Portable design,drop-resistant soft rubber body protecting it from falling during a diagnosis with an unexpected move.Comfortable Hand-held Imaging, 5.6 inch LED HD Display, Machine Weight was about 950g.Easy to Carry.You can use it in farm,or at home.
• This B-Ultrasound machine has 5 display mode: B, BB, 4B, BM, M.Electronic focus,Frequency range adjustable.and it can support Convex probe/ Rectal probe/Micro convex/Linear/Back fat. for more than 4 working hours.32GB permanent storage for fast image storage and playback
• We provide the most professional after-sales service and product training service . Two year free warranty.What you get was not only a machine ,but a long-time training to support your work from DAWEI .
• Dawei veterinary Medical Corp.,Ltd. is a professional manufacturer of ultrasound scanners that is specialized in the development, manufacture and distribution of high quality ultrasound products.Any questions about our products,please feel free to contact us

model number: DKS1

Part Number: DKS1

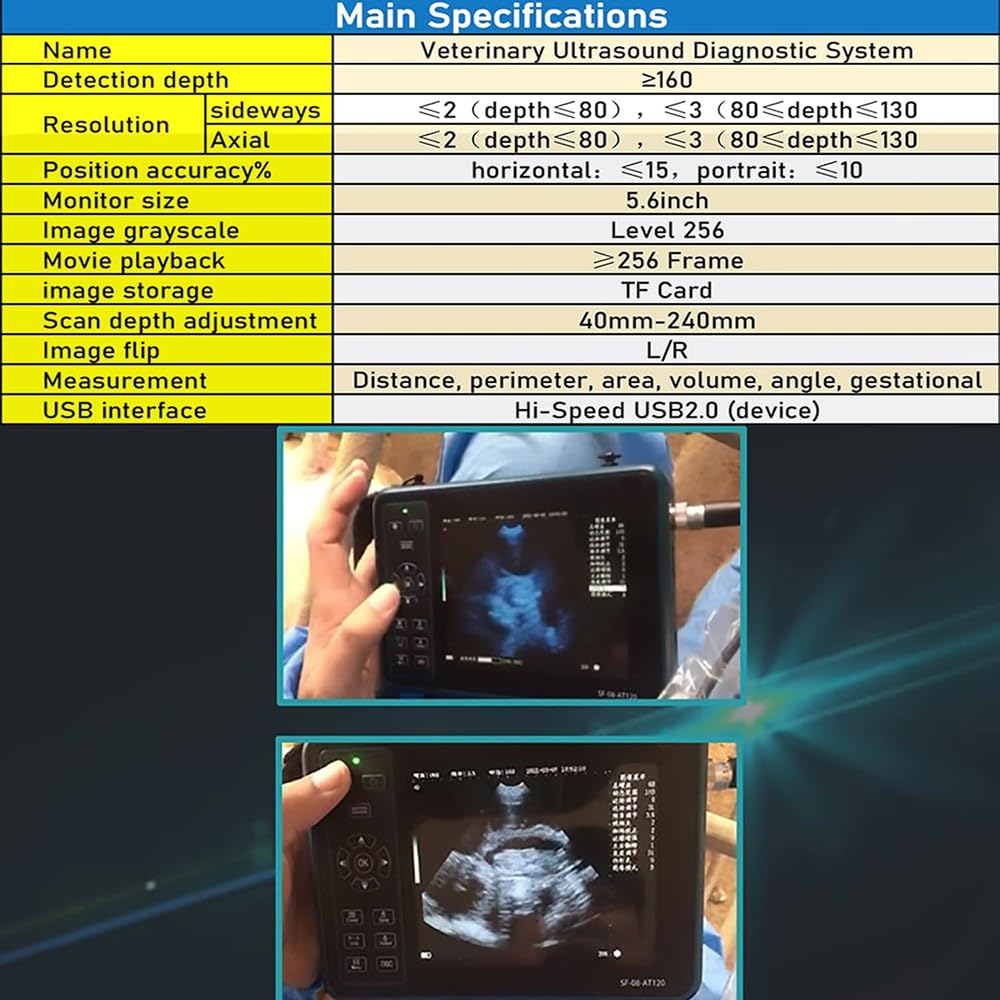

Details: Technical parameters
1, Description of equipment use: mainly applied to sheep, pigs and other kinds of animal abdominal organs examination.

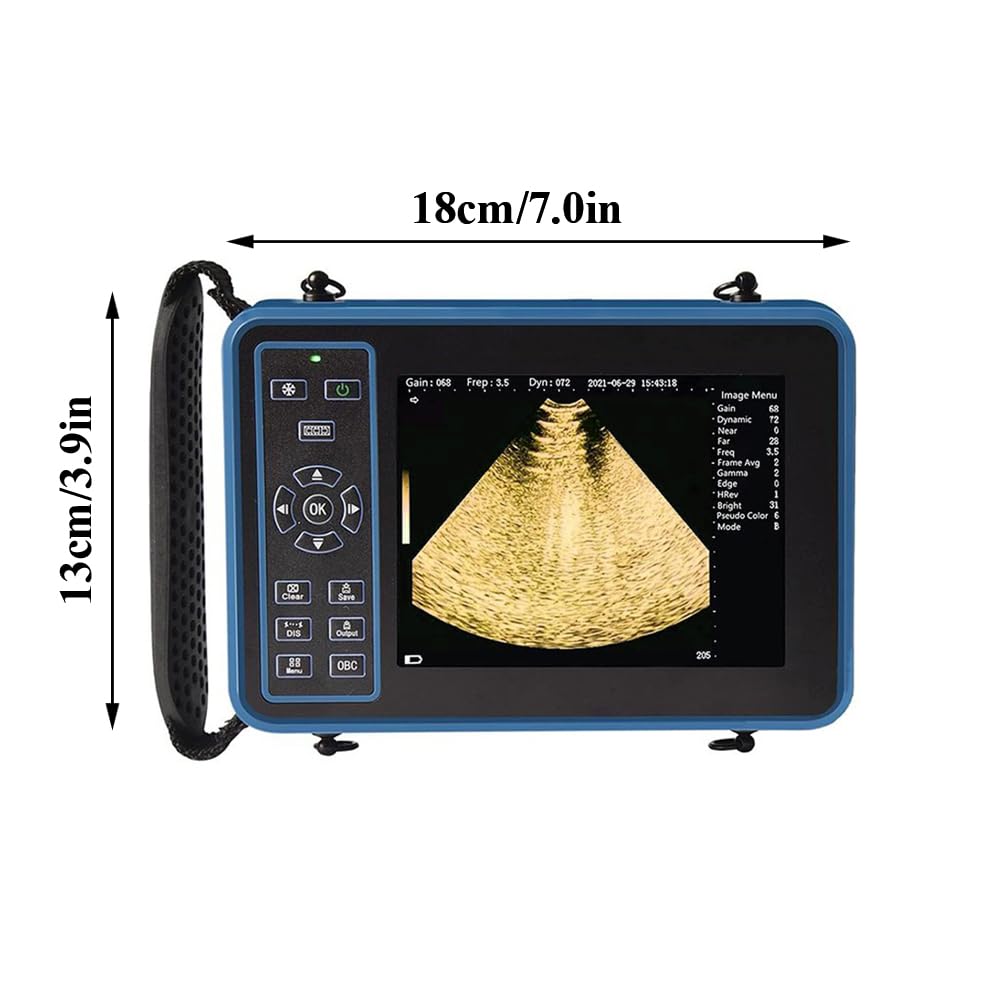

2, display: 5.6-inch LED medical display.
4, Operating interface: Chinese/English/French/Russian/Spanish/Portuguese interface.

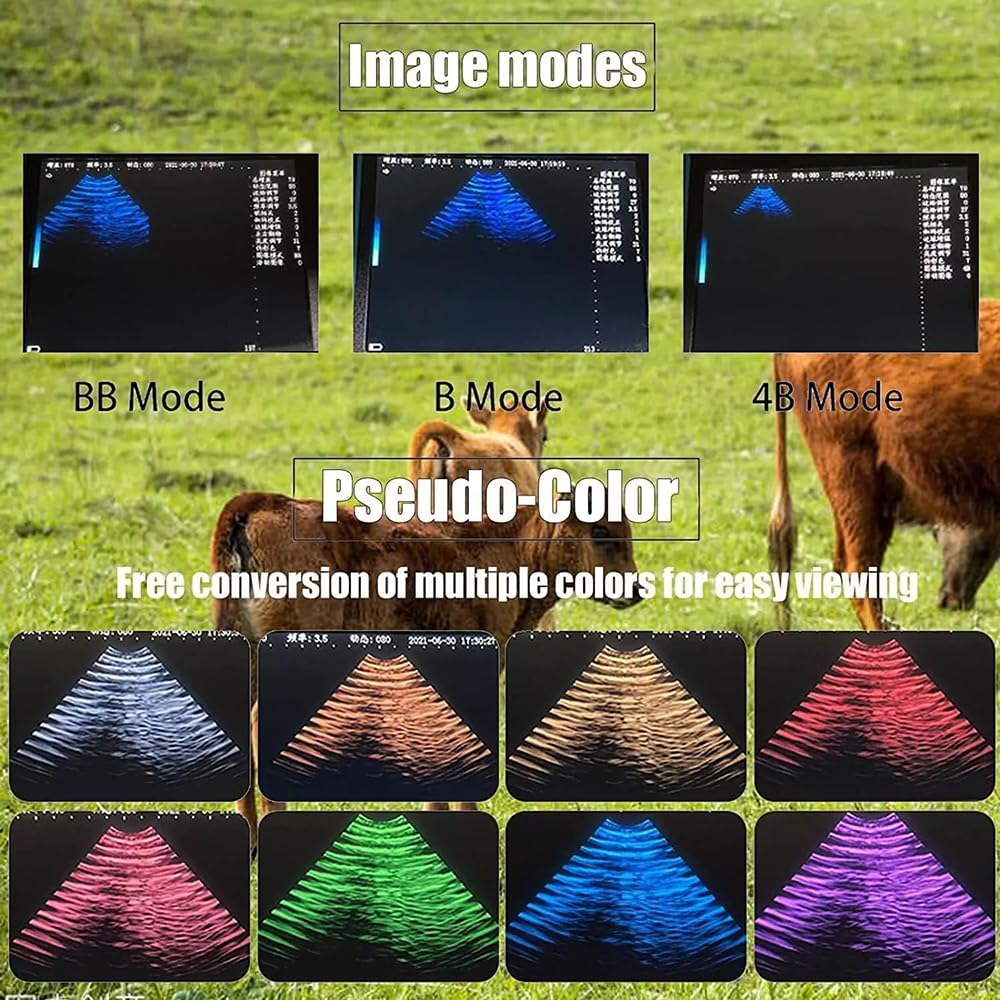

5, display mode: B, BB, 4B, BM, M.
6, electronic focus: four segments of electronic focus, adjustable focus position.
8, Image mirroring: left and right mirroring, up and down flip.
9, measurement: distance, perimeter, area, obstetrics.
Animal measurement package: cattle (BPD, CRL, TD,), horses (GSD, BPD, CRL), pigs (GSD, LOIN) sheep (CRL, BPD, TD), dogs (HD, BD, GSD, CRL), cats (HD, BD).
10, Movie playback: 255 frames, continuous playback or frame-by-frame view.
11, permanent storage: 32G, can be stored and read.
12, gray scale: 256 levels.
13, battery capacity: 2600mAh, can continue to work for about 3 hours.
14, Total gain: 0-255, near-field gain: -31-0, far-field gain: 0-31.
15, image post-processing: 0-3.
16, Edge enhancement 0-3.
17, Brightness 0-31.
18, Image optimization 0-12.
19, Frame correlation 0-3.
20, Contrast 0-63.
21, One key parameter recovery.
22, 24 kinds of pseudo-color processing.
23, body markers ≥ 12 kinds, adjustable probe body position markers.

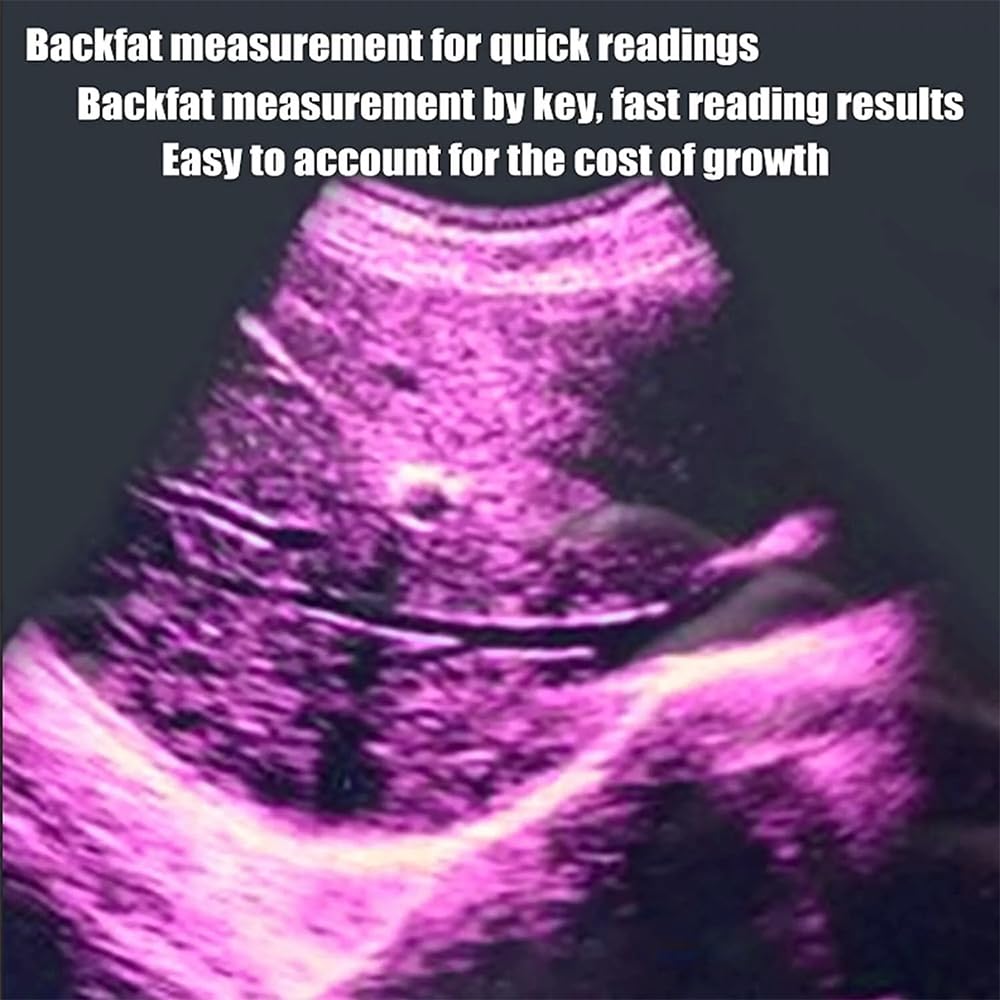

24, back fat measurement 2 modes: automatic measurement, manual measurement.
25, support grid adjustment, grid spacing of 2 kinds, grid color 15 kinds.
26, Dynamic 27-90.
27, 16 levels of magnification: multi-level probe depth: 3.5MHz (64-242) micro-convex (64-242) rectal (50-221) back fat (64-242) linear array (50-221) convex array rectal (64-242).
28, interface: probe interface, USB interface, 14V charging interface.
29, Power indication, and charging indicator,net weight 951g.

EAN: 6972125718921

Package Dimensions: 20.5 x 14.5 x 6.7 inches
