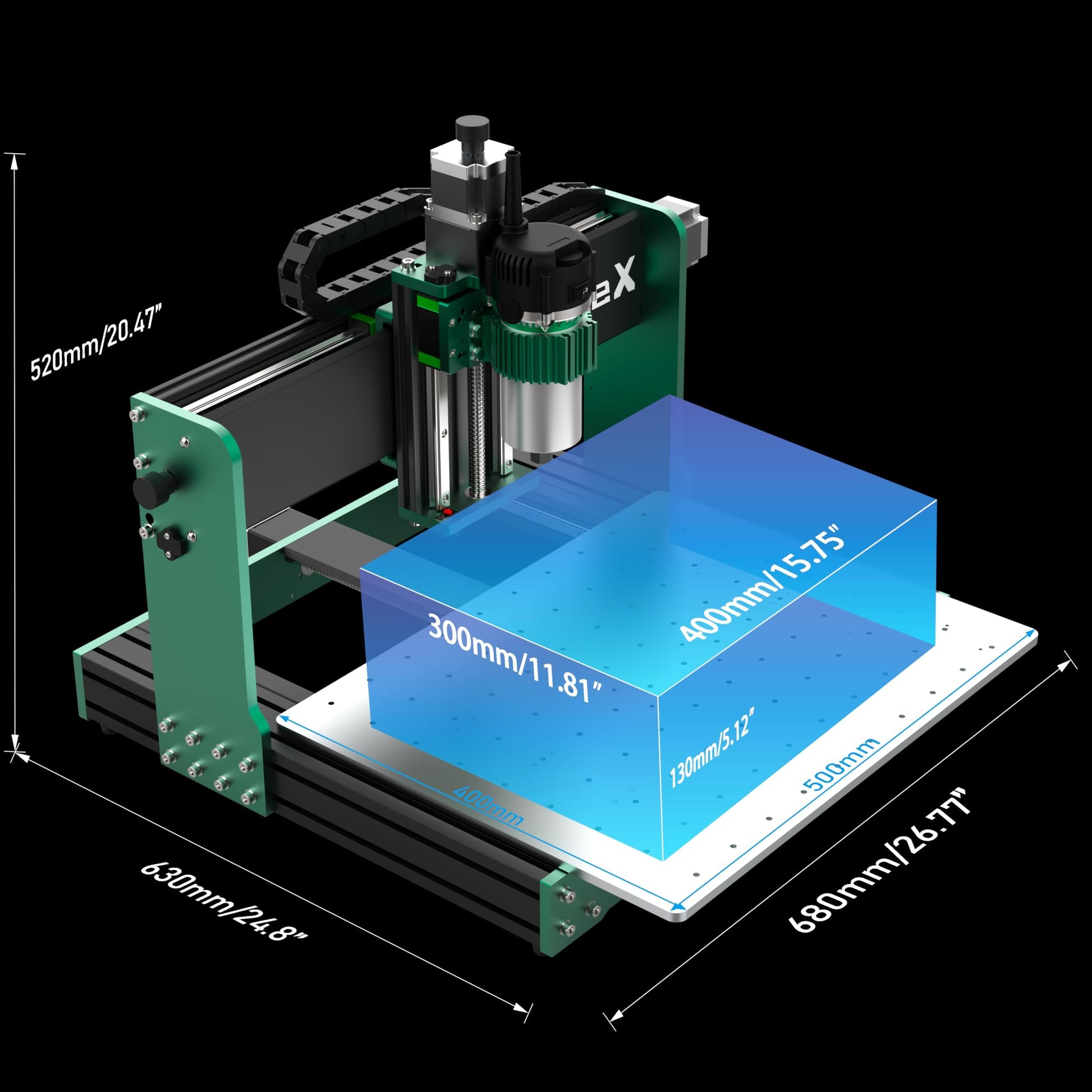

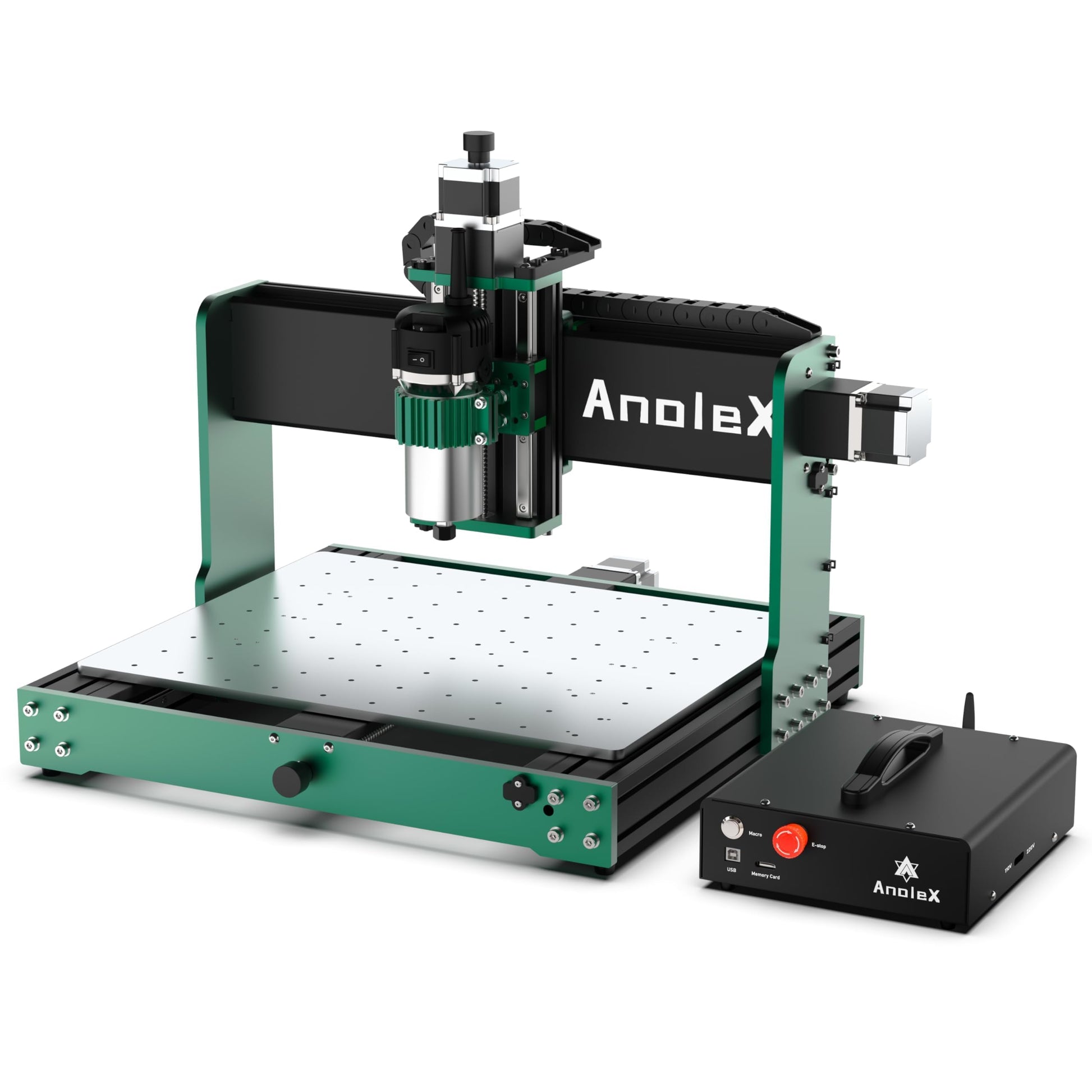

AnoleX CNC Router Machine 4030-Evo Ultra 2, All-Metal XYZ Axis Dual Steel Linear Guides & Ball Screws with 800W Trim Router for Metal Aluminum Brass Wood Acrylic PCB

Brand: AnoleX

Color: Black

Features:

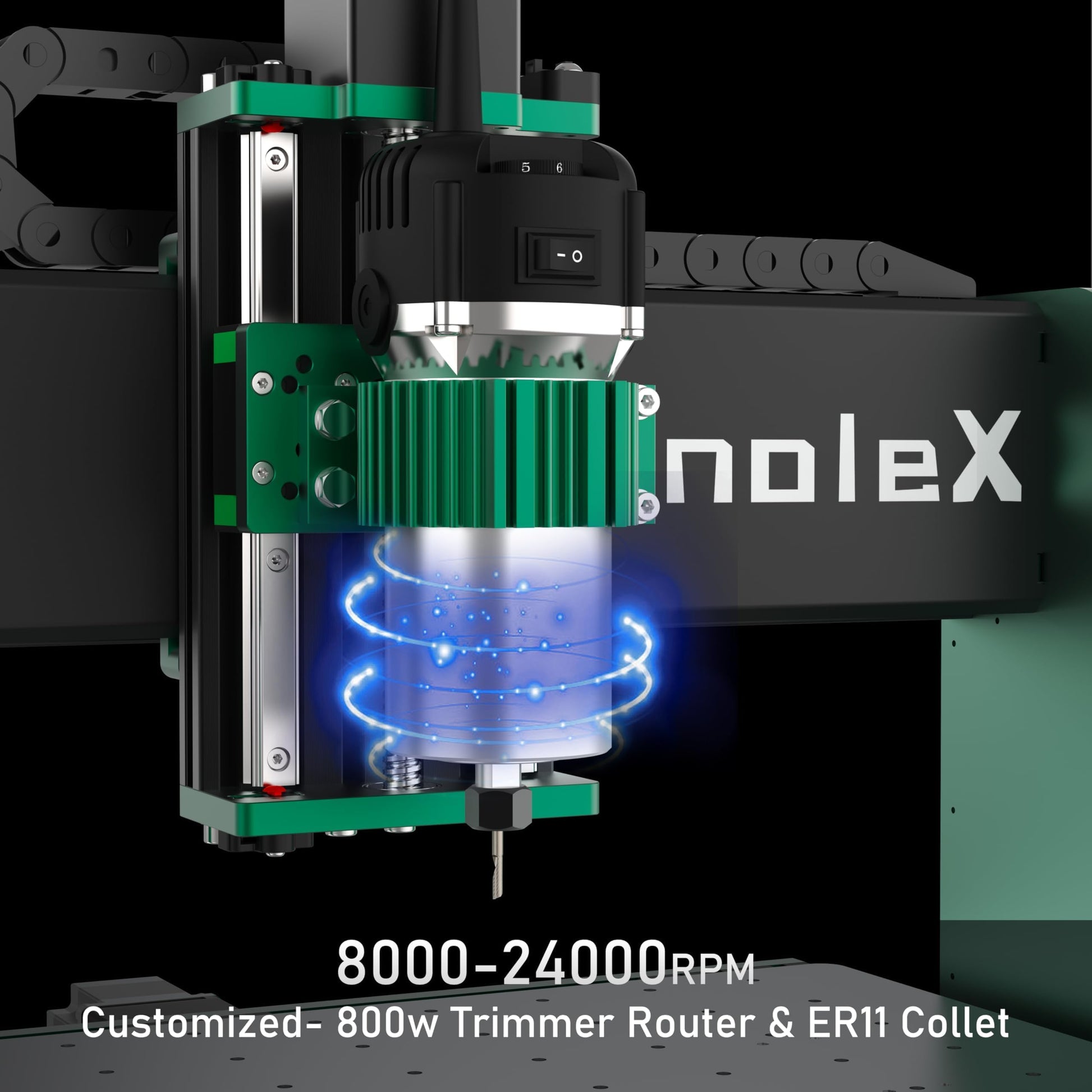

• [Upgraded Φ65mm Trim Router] 800W trim router & Er11-1/8' collet with 6-speed settings (8000-24000 RPM). Software-controlled run/stop functionality, with speed adjustment requiring manual dial control.

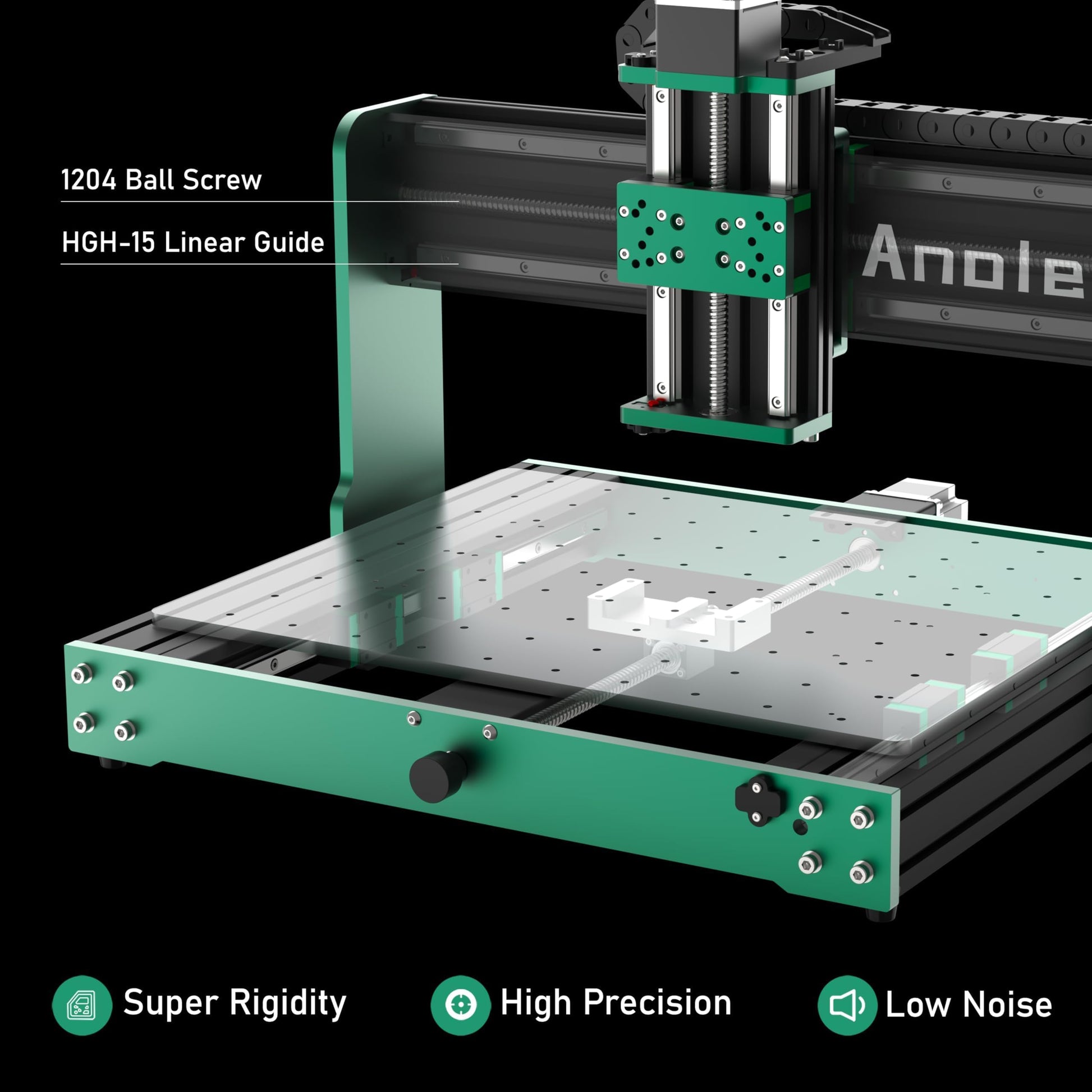

• [Dual Linear Rails and Ball Screws] Each axis (X, Y, Z) equipped with HGH-15 dual linear rails and 1204 ball screws. Enhances precision, rigidity, and load capacity for metal cutting, with improved dust protection for the X&Y axes.

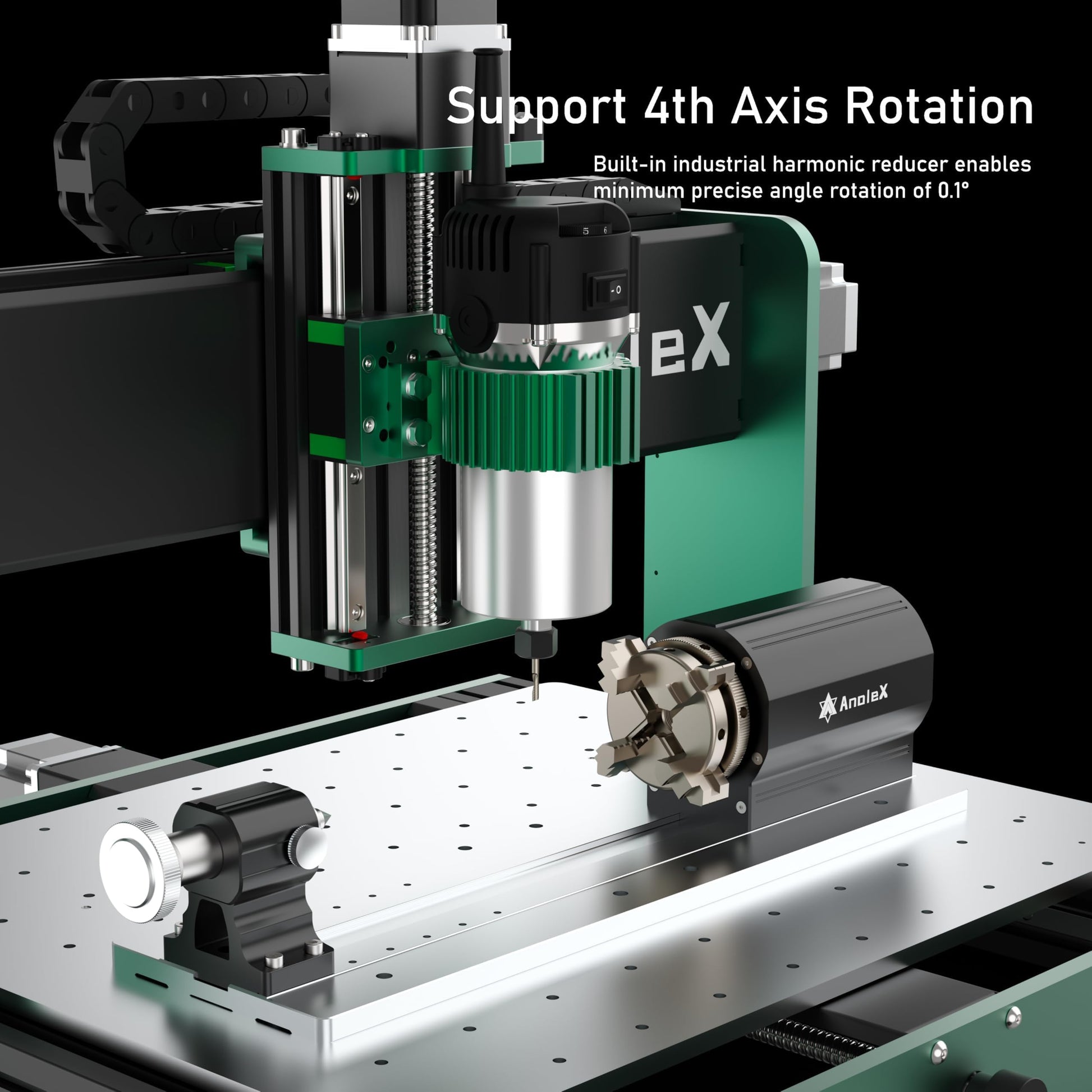

• [Grbl_ESP32 Firmware (GRBL 1.3a)] Optimized control board, runs on the latest GRBL 1.3a firmware, supporting advanced features such as laser engraving, 4th axis (rotary axis), M07/M08 coolant control, closed-loop stepper motors, and a 3-pin touch probe.

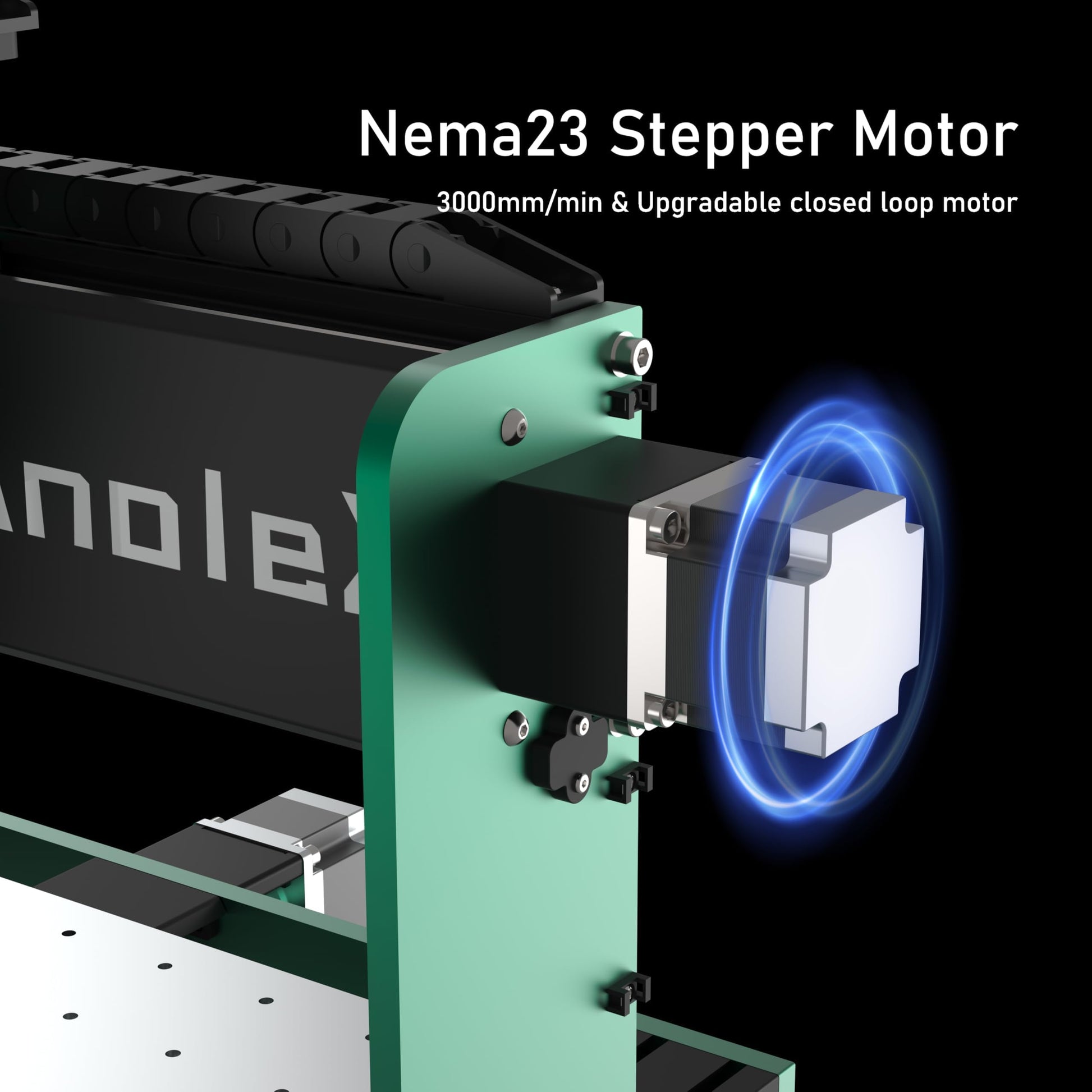

• [Nema 23 Stepper Motors] XYZ axes feature Nema 23 stepper motors (2.8A, 1.2N/m torque), with closed-loop interfaces for easy upgrades, easy replacement, plug and play.

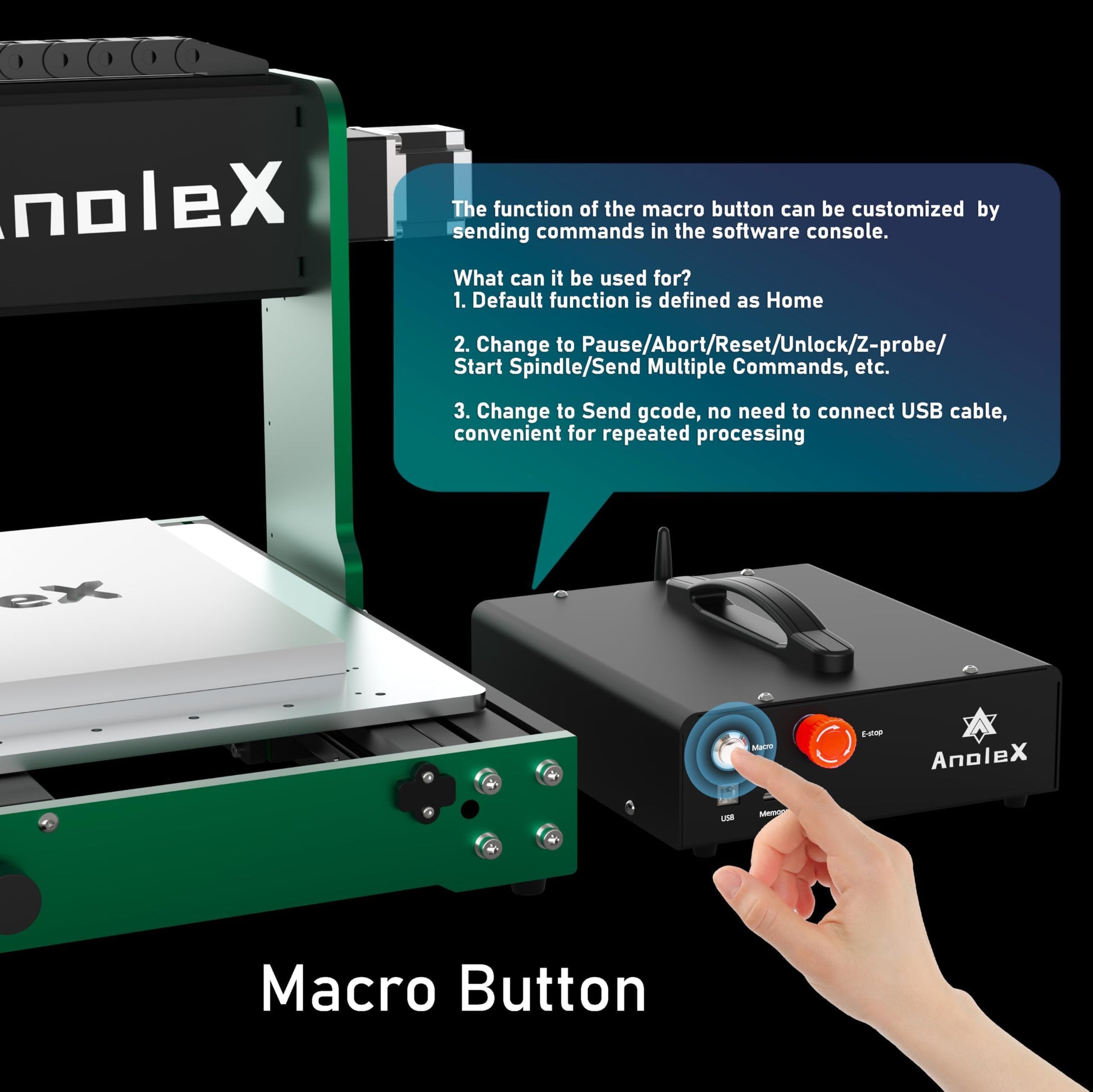

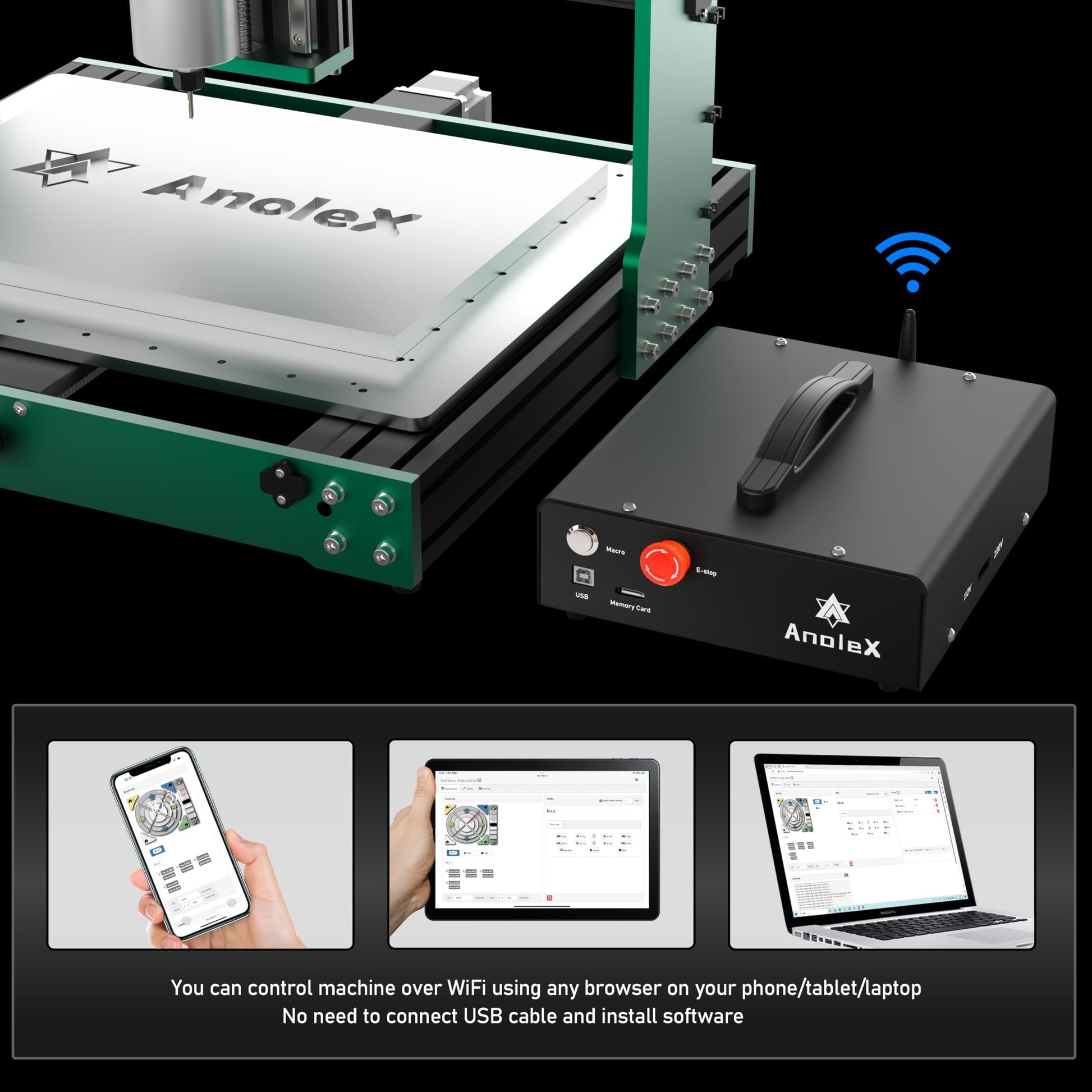

• [Customizable Macro Buttons & WiFi] Built-in 32-bit MCU with ESP3D Web UI, enabling control via PC, smartphone, or tablet without USB cable. Macro button defaul is homing, reprogrammable for tasks like pause/stop/reset or executing G-code from an SD card.
• [Software & Fully Functional] Compatible with Windows, Linux, and Mac, supporting GRBL-compatible software such as UGS, Fusion360, VCarve, Easel, and Lightburn etc..Includes XYZ dual limit switches, home switch, emergency stop switch, Z probe tool.
• [Easy Assembly and User Support] Major components pre-assembled with clear cable management, accompanied by a detailed paper user manual and assembly/demo video for quick setup.

model number: 4030-Evo Ultra2

Part Number: 4030-Evo_Ultra2

Package Dimensions: 30.7 x 25.6 x 15.7 inches
