40 sqft Floor Heating Mat Kit 120V, Electric Tile Floor Heating System, UDG-4999 Radiant Floor Heating Thermostat with GFCI, Floor Sensor. Heated Floor Mat Adhesive Backing. Tile, Stone, Vinyl

Brand: HeatTech

Color: Red Self-adhesive Mesh, Blue Electric Floor Heating Cable

Features:

• Electric floor heating mat specs: 40 sqft (20' wide x 24.4ft long). Voltage: 120V. Load: 4 Amps. Peak-Power Output: 480 Watts. Heating cable spacing: 3'. Heating Mat Output: 12 Watts/sqft (41 BTU/sqft). Zero EMF.

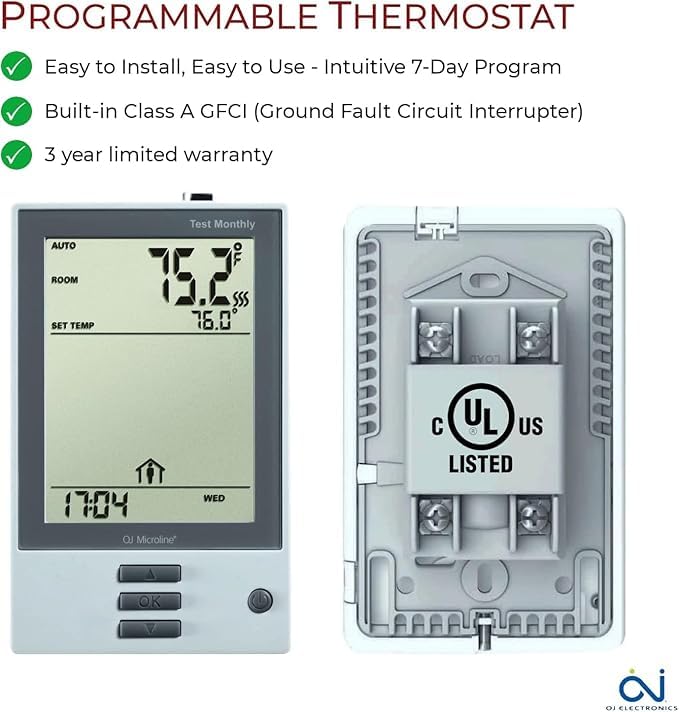

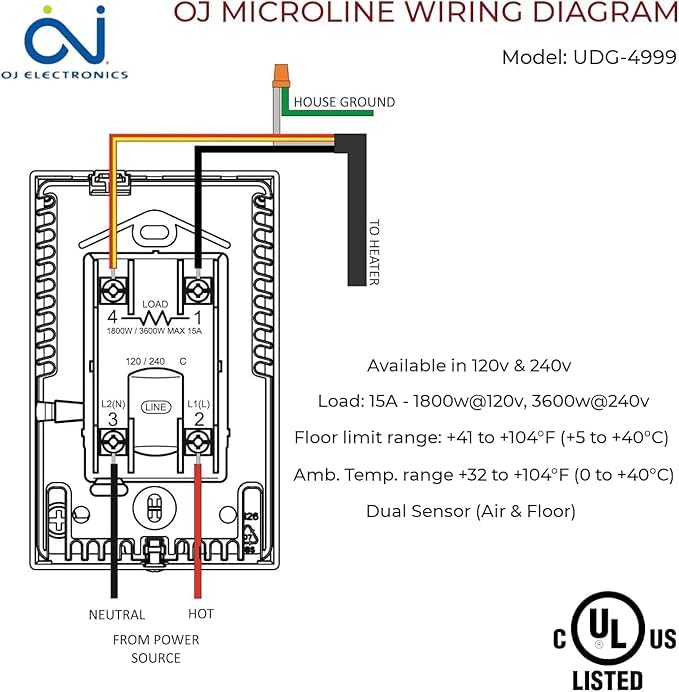

• OJ Microline UDG-4999 Floor Heating Thermostat features a built-in Class A GFCI (Ground Fault Circuit Interrupter) with self-testing mode. OJ Microline Floor Heating Thermostats are C-UL-us Listed for Wet Room installations. Dual Sensing (Air/Floor). Suitable for Tile, Stone, Marble, Concrete, Laminate, and Wood floors. The Floor Heating Thermostat is 7-day Programmable. Includes a Floor Sensor.

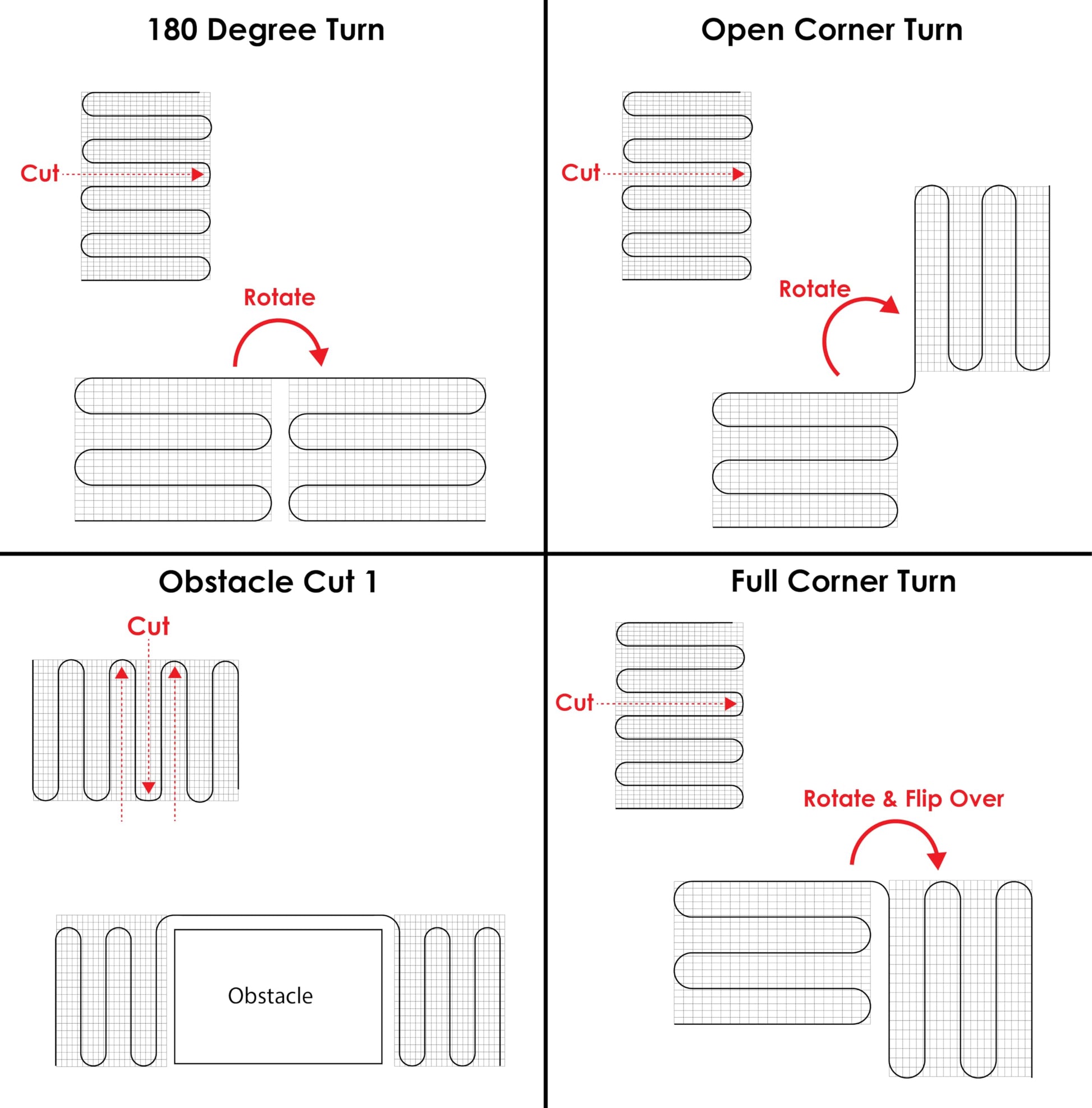

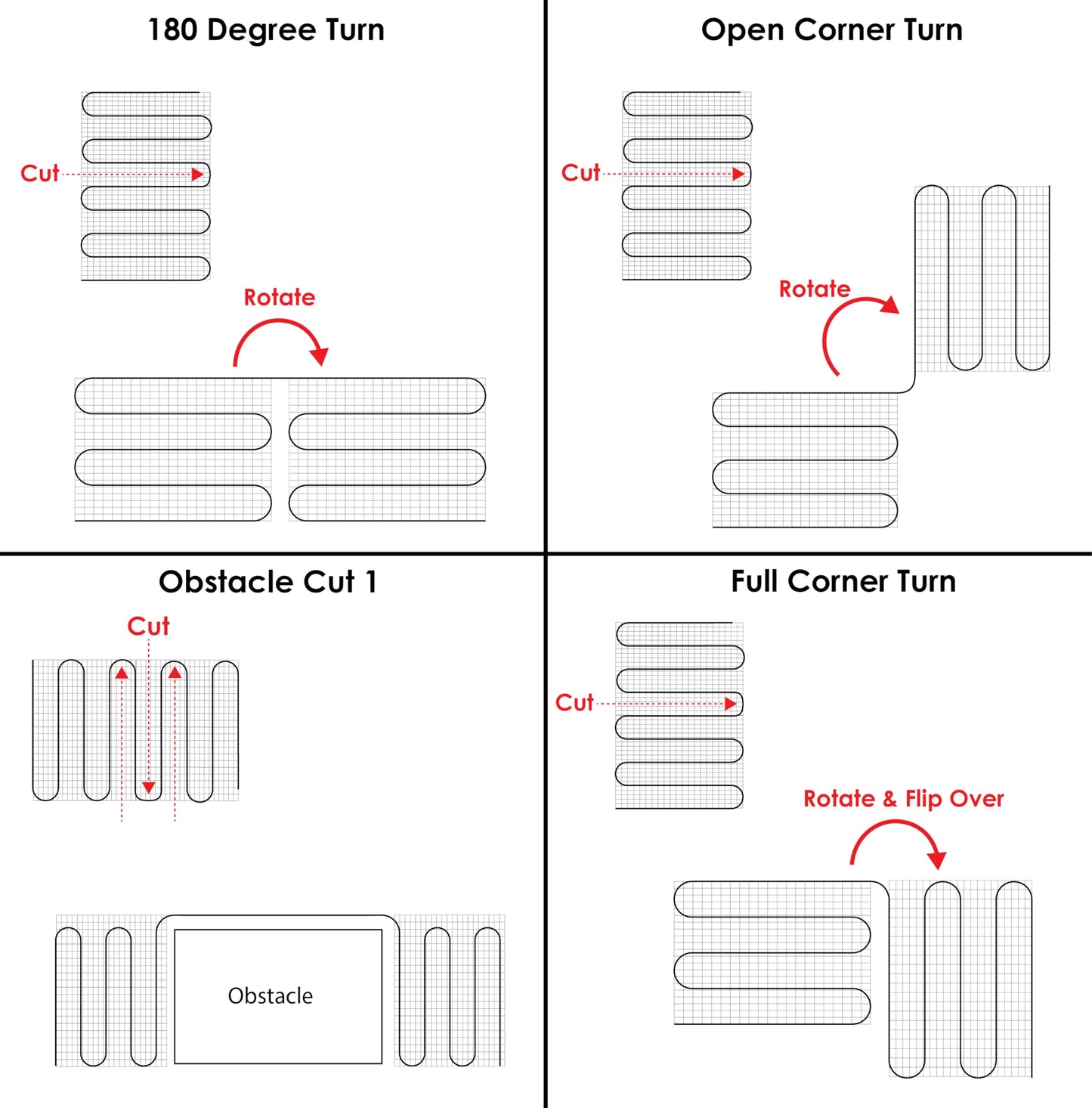

• ADHESIVE backing - Heating Mat lays flat and stays flat, no stapling needed. The heating cable is spaced at 3'. Red-colored mesh can be cut to make turns and rotations. Heating cable can be spaced as close as 2' to fit any excess. Doing so will result in 15 Watts/sqft output. Heating cable spacing can be increased to 4' to cover a heating area fully. Doing so will result in 9 Watts/sqft output.
• 120V Electric Floor Heating Mats can be combined to heat up to 150sq.ft. of space using a single thermostat. Electric Floor Heating Mats must be connected to the thermostat in parallel. The max combined load per thermostat is 15 Amps.
• UL listed and/or ETL listed in the USA and Canada. 25-year Manufacturer's Warranty on Radiant Floor Heating Mats. 3-year Manufacturer's Warranty on Floor Heating Thermostat.

model number: HTMAT-KIT-120-40-OJ

Part Number: HTMAT-KIT-120V-OJ

Details: Turn those chilly tile floors into warm and cozy with HeatTech electric radiant floor heating system and enjoy the benefits of quiet operation, affordable cost and unmatched comfort levels of radiant heated floors. Electric floor heating offers a healthier alternative to traditional heating systems such as forced air and baseboard/radiators, both of which dry the air and require purchase, installation and maintenance of expensive parts and equipment.

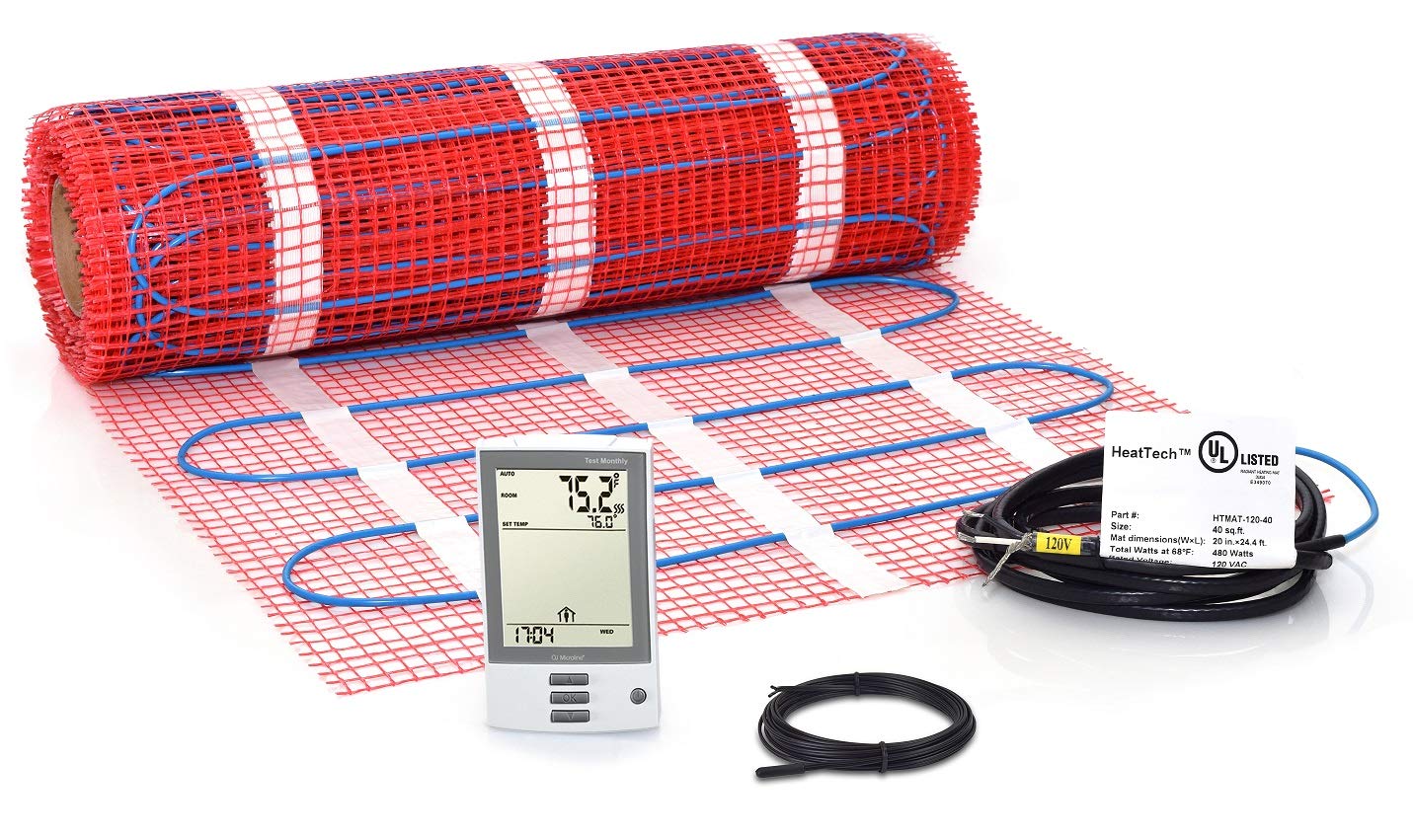

What’s included:
HeatTech™ Electric Radiant Floor Heating Mat (HTMAT);
OJ Microline UDG-4999 Thermostat with Class A GFCI (for wet/dry locations - incl. bathrooms, kitchens, etc.), 7-day programmable;
OJ Floor Sensor with 15ft lead wire;
Installation Manual.

Applications:

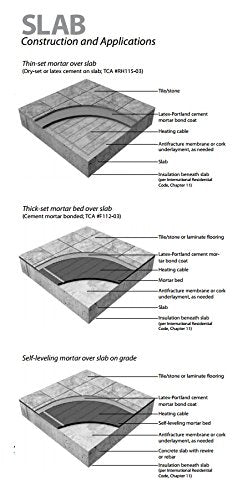

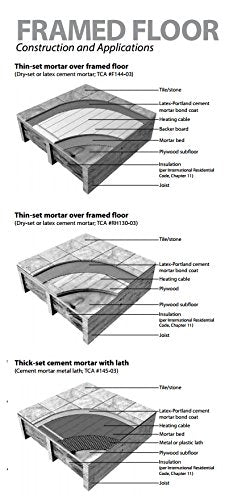

Tile (Porcelain/Ceramic/Glass), Stone (Granite/Slate/Marble/Pebble) floors;
Bathrooms, Kitchens, Mudrooms, etc.;
Supplementary or Whole-house heating;
Residential homes and apartment buildings;
New construction and retrofits.

HeatTech™ System Benefits:
HeatTech floor heating mats are UL listed for USA (meet and exceed highest electrical safety standards);
HeatTech mats feature a sticky/adhesive backing for easy adhering to variety of surfaces, making installation much faster and easier;
Our heating cable is only 1/8' thick and will not raise the floors significantly;
Cable spaced at 3' apart for optimal performance and outputs as much as 41 BTU’s per sqft, making the system suitable for whole-house heating applications;
A single 10ft long cold lead means no extra wiring or drilling;
Does not dry air like steam radiators and forced air heating;
Zero Electromagnetic Field;
Quiet operation.

Package Dimensions: 24.6 x 8.5 x 8.1 inches
