40 sqft 240V Electric Radiant Floor Heating Cable – Flexible in-Floor Heating Wire for Tile – Easy Install Electric Underfloor Heating System Cable – Safe & Energy-Efficient Heated Flooring Wire

Brand: HeatTech

Color: Red Radiant Floor Heat Wire

Features:

• Electric Floor Heating Cable Length: 160ft long. Heated Area Coverage: 25 sqft @ 2' spacing; 40 sqft @ 3' spacing (recommended), 55 sqft @ 4' spacing. Voltage: 240V. Peak-Power Output: 480W (3W/ft.). Amperage: 2 Amps. ZERO EMF.

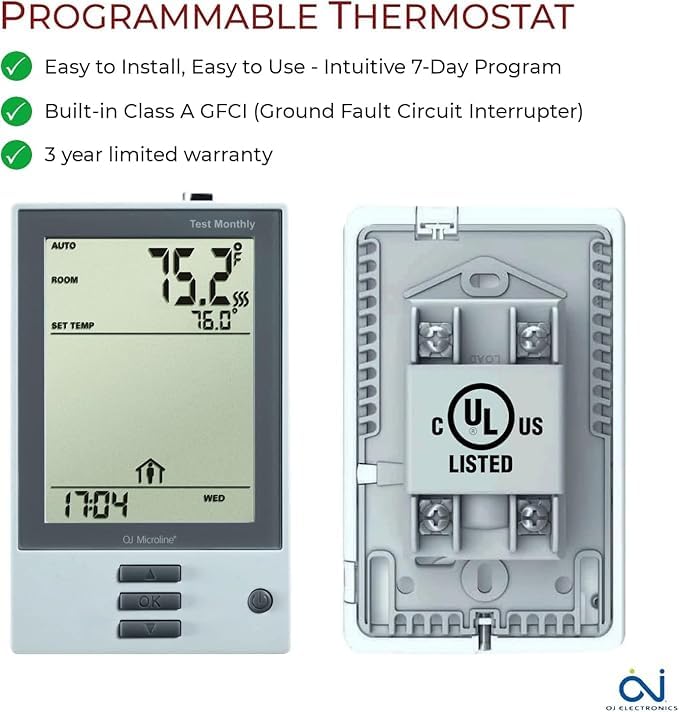

• OJ Microline UDG-4999 Floor Heating Thermostat features a built-in Class A GFCI (Ground Fault Circuit Interrupter) with self-testing mode. OJ Microline Floor Heating Thermostats are C-UL-us Listed for Wet Room installations. Dual Sensing (Air/Floor). Suitable for Tile, Stone, Marble, Concrete, Laminate, and Wood floors. The Floor Heating Thermostat is 7-day Programmable. Includes a Floor Sensor. Floor limit range: +41 to +104°F (+5 to +40°C). Ambient Temp. range +32 to +104°F (0 to +40°C)
• Flexible Electric Floor Heating Cable for Custom Layouts — Premium in-floor heating wire designed to heat bathrooms, kitchens, living rooms and more; bends easily around fixtures and corners for DIY or pro installation. Ideal for tile, stone & laminate floors.
• Versatile Application & Easy Installation — Works with a wide range of flooring types (tile, stone, laminate, engineered wood) and easily integrates into thinset or mortar; ideal for new builds or renovations.
• Energy-Efficient & Quiet Operation — Efficiently warms with minimal energy use and operates silently with no moving parts; paired with programmable thermostat for precise temperature control.

model number: HTCBLKIT-240-160

Part Number: HTCBLKIT-240-160

Details: HeatTech Electric Radiant Floor Heating Cable is perfect for:
Tile, Stone, Granite and Marble floors;
Bathrooms, Kitchens, Showers, Saunas and others;
Both new construction and retrofits;
Residential homes and apartment buildings;
Whole house heating;

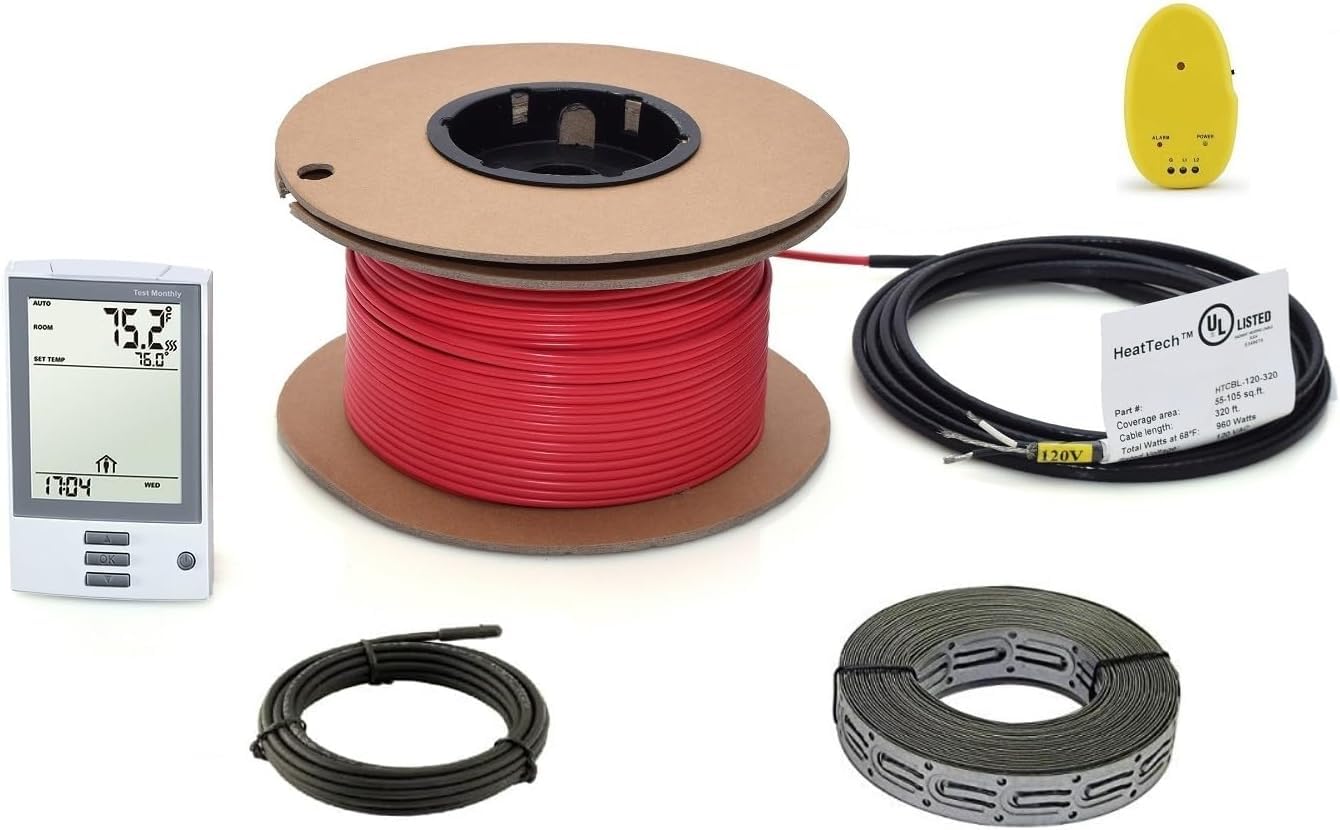

What's included:
Electric radiant heating cable on a spool.
Detailed installation manual.

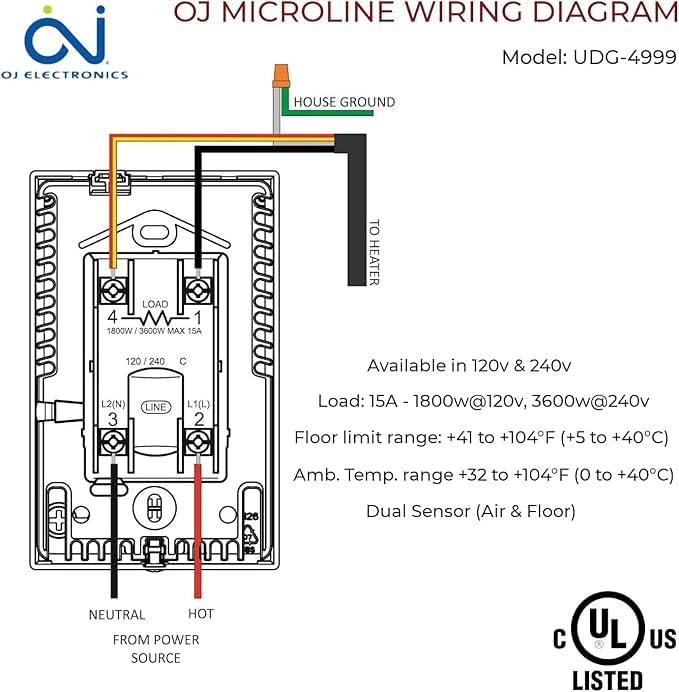

OJ Microline UDG-4999 Electric Radiant Floor Heating Thermostat with Floor Sensor and built-in GFCI

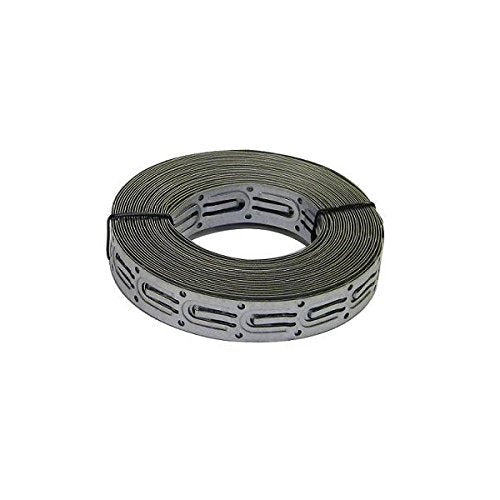

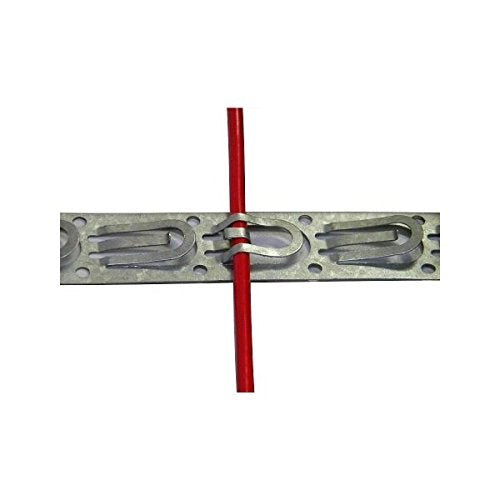

Cable guides to maintain even cable spacing throughout the installation.

Features:
HeatTech floor heating cable is UL listed for USA (complies with electrical safety standards).
Heating cable is only ~1/8' thick and will not raise the finished floor significantly.
Zero Electromagnetic Field.
Made using the highest quality materials in the industry.
Comes with a single armored 10ft long cold lead wire for easy connection to the thermostat – no extra wiring or drilling.

Sizing & Installation:
Sizing is easy – simply select a HeatTech cable with area coverage which corresponds to the size of the heated area.
120V system allows for installation of up to 600ft of heating cable (150 sq. ft. at 3” spacing) on a single thermostat.
240V system allows for installation of up to 1200ft of heating cable (300 sq. ft. at 3” spacing) on a single thermostat.
System allows to connect up to 3 separate cable runs to a single thermostat to match the size of the heated area.
Installing cable at 3” spacing is recommended for optimal heat output.

Package Dimensions: 12.0 x 9.0 x 6.0 inches
